X70 - Smart ECR - Newland NPT

Integrated · Scalable · Refined

X70

Freedom to Move. Power to Serve.

Integrated · Scalable · Refined

X70

Freedom to Move.
Power to Serve.

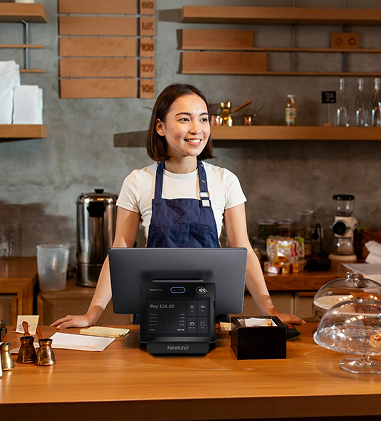

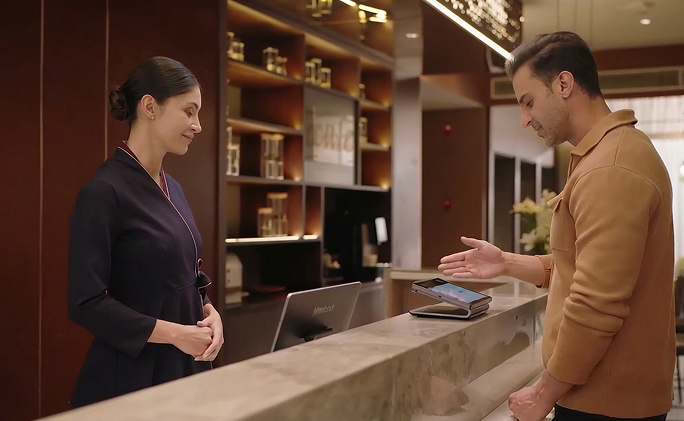

Built for Real-World Scenarios

Adapted to fit how different businesses serve their customers.

Bakery

Restaurant

Hotel

Cafe

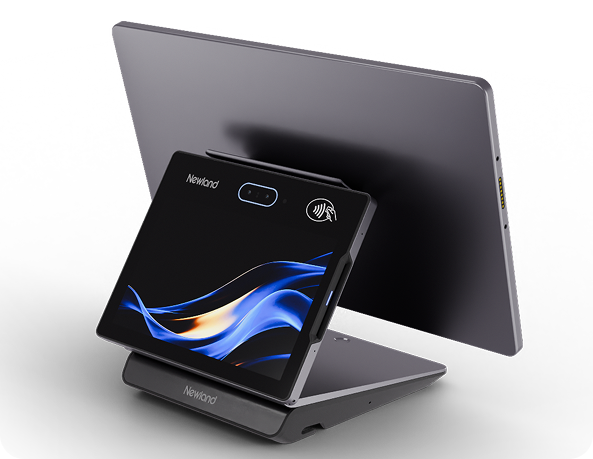

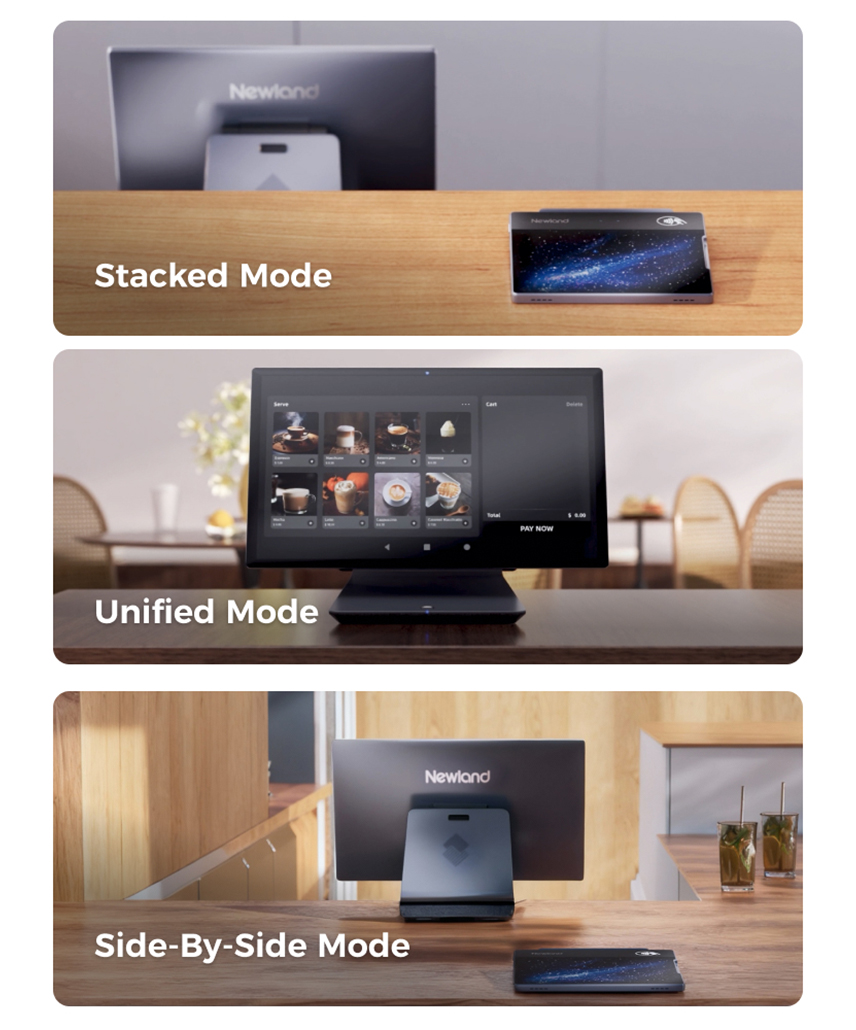

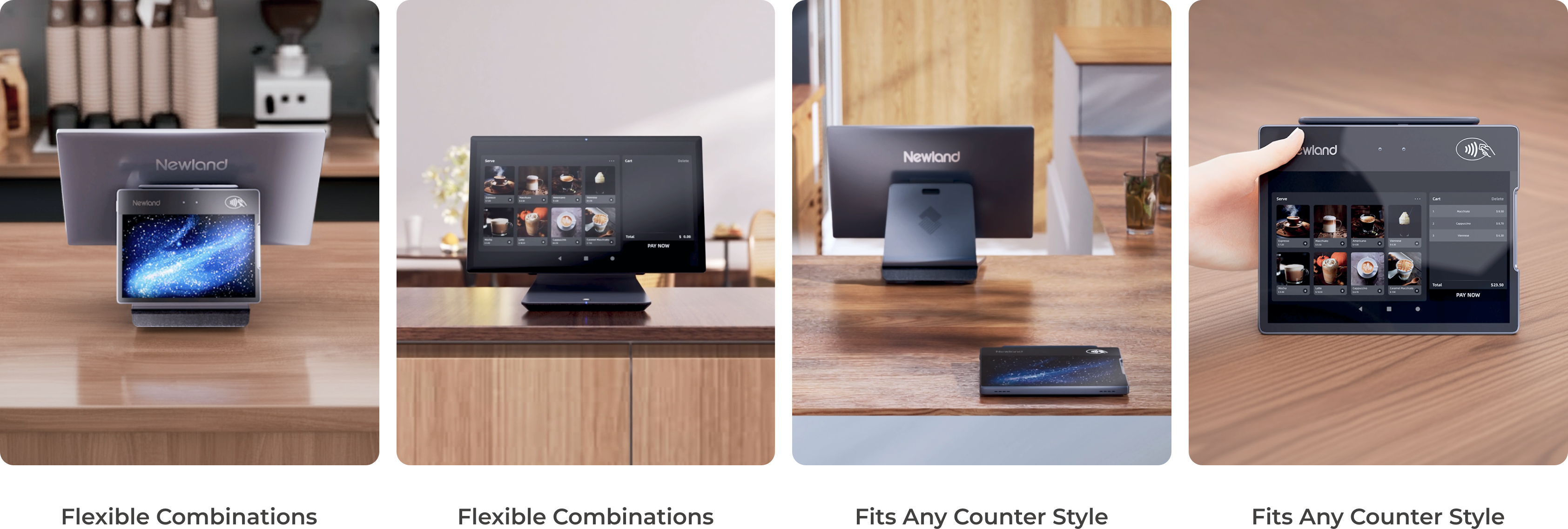

One Device. Many Ways.

Designed to work seamlessly as one system—or operate independently across different checkout scenarios.

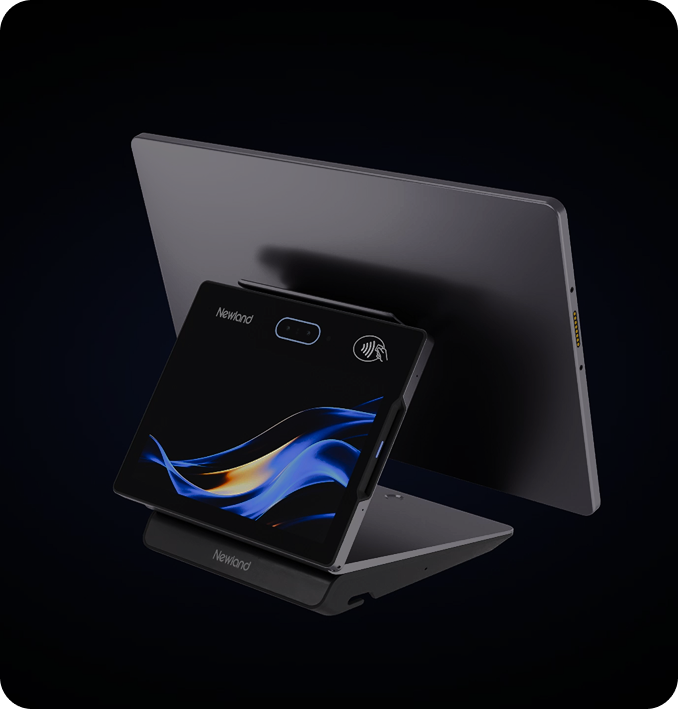

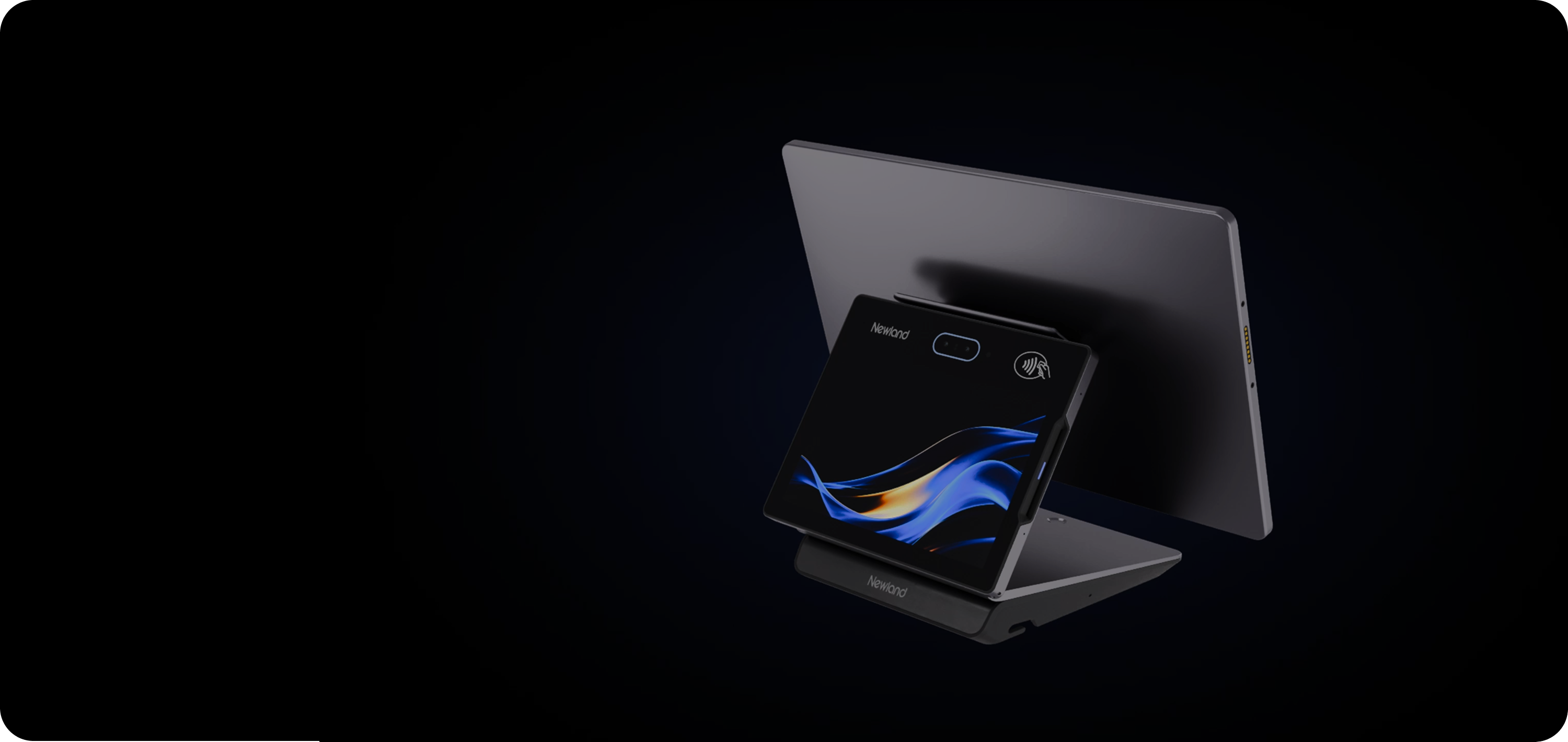

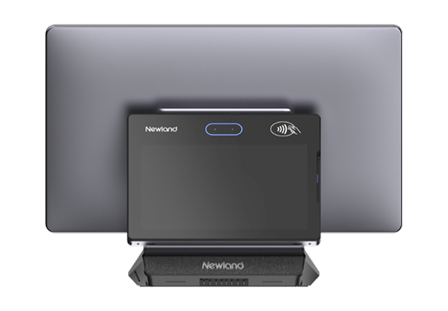

All-in-One Setup

All-in-One Setup. A fully integrated checkout that keeps everything aligned, focused, and effortless.

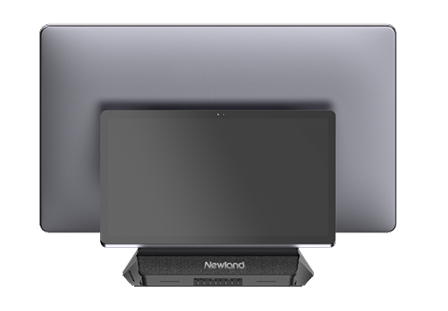

Counter-Connected Setup

Counter-Connected Setup. Two screens, one experience—designed for smooth interaction across the counter.

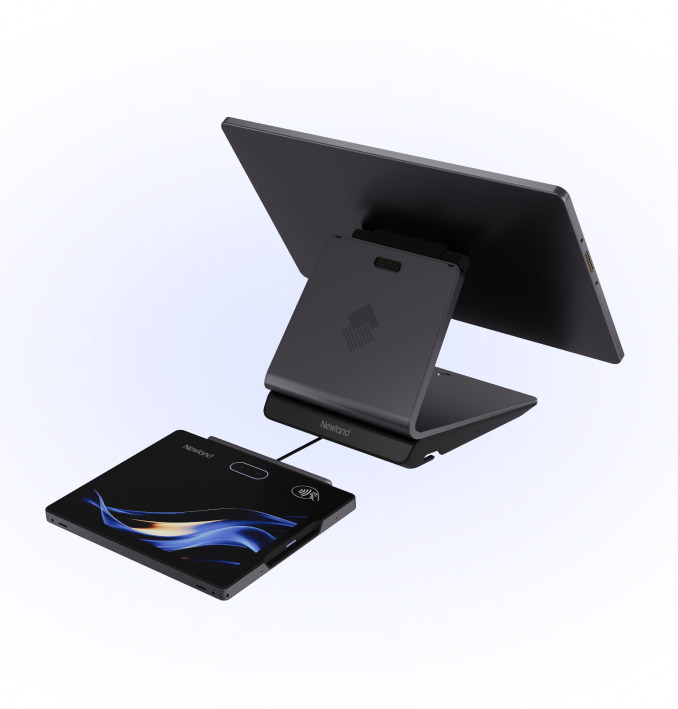

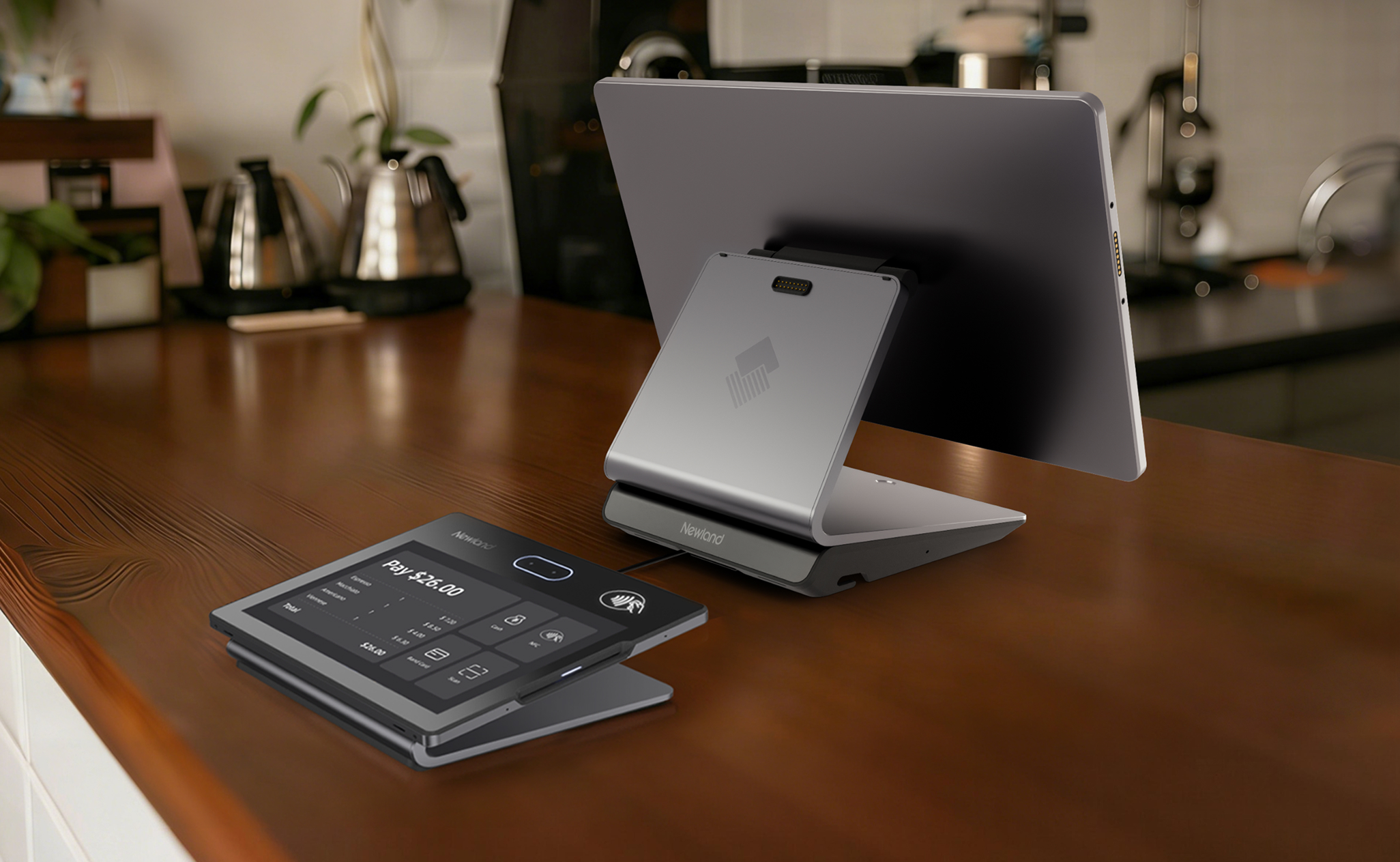

Flexible Distance Setup

Flexible Distance Setup. Bring payment closer to customers while staying connected to the core system.

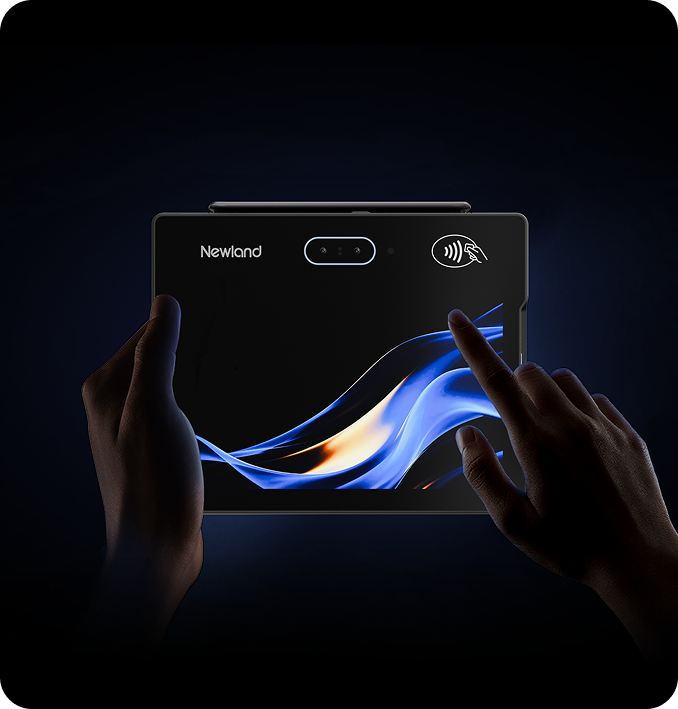

Tablet-Only Setup

Tablet-Only Setup. A single tablet experience built for face-to-face service.

Best for: Compact Counters

Best for: Layered Counters | Wide Counters

Best for: Shaped Counters | Experience Stores

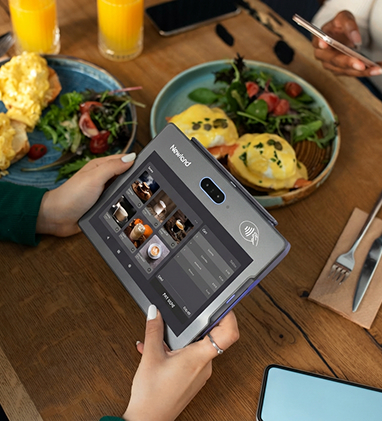

Best for: Table-Side Service | Pop-up Stores

Best for: Compact Counters

Best for: Layered Counters | Wide Counters

Best for: Shaped Counters | Experience Stores

Best for: Table-Side Service | Pop-up Stores

All-in-One Setup

All-in-One Setup. A fully integrated checkout that keeps everything aligned, focused, and effortless.

Counter-Connected Setup

Counter-Connected Setup. Two screens, one experience—designed for smooth interaction across the counter.

Flexible Distance Setup

Flexible Distance Setup，Bring payment closer to customers while staying connected to the core system.

Tablet-Only Setup

Tablet-Only Setup. A single tablet experience built for face-to-face service.

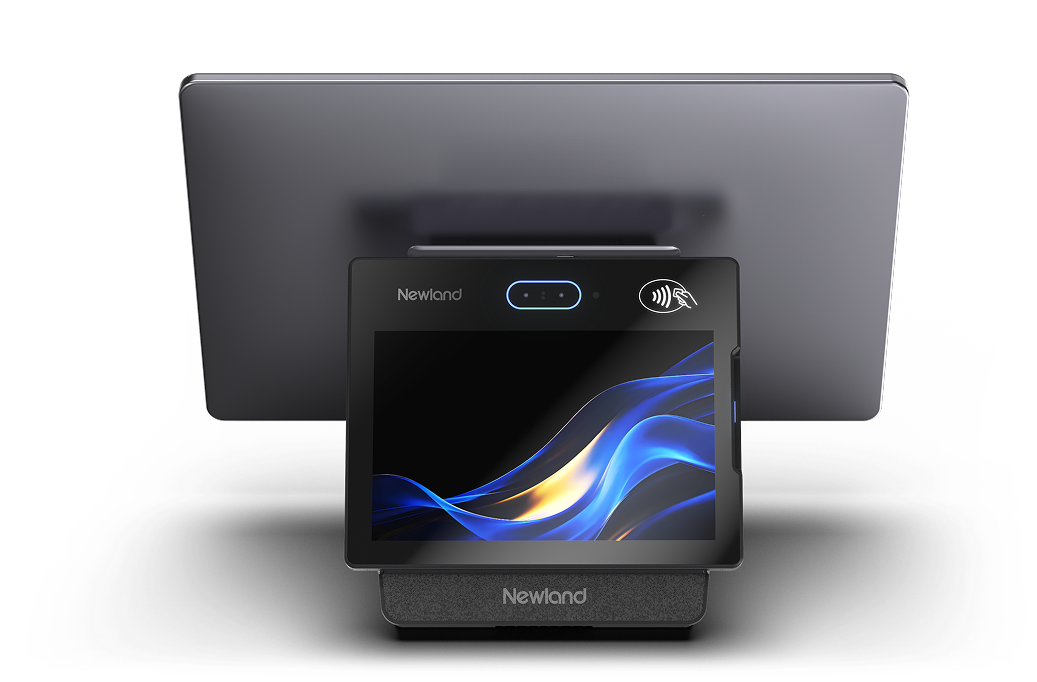

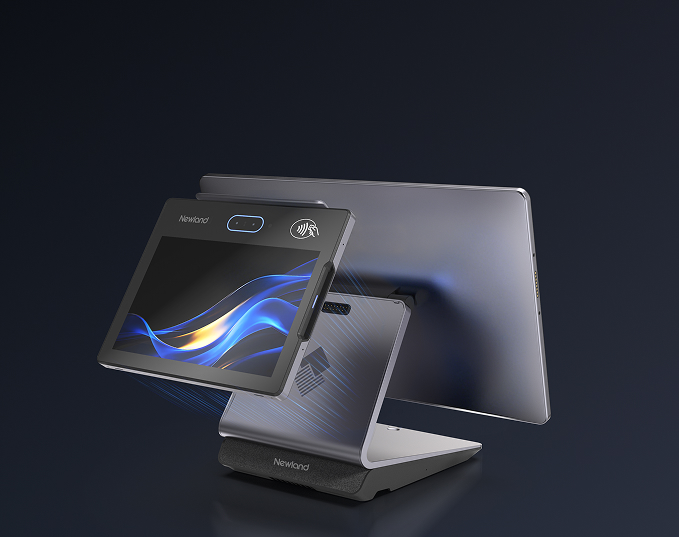

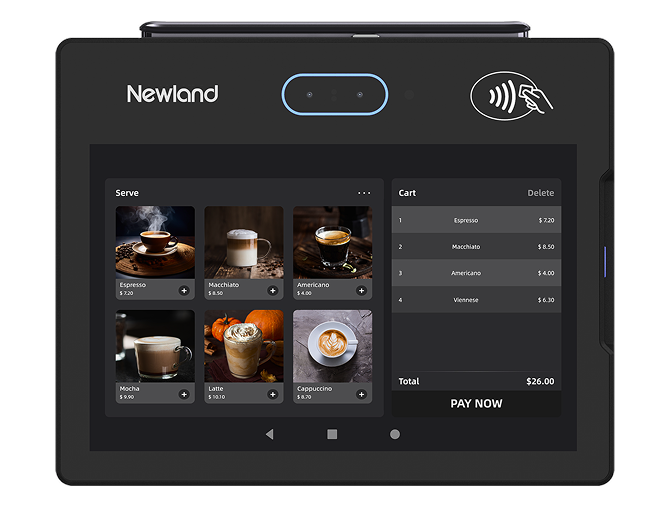

More Than a Dual-Screen ECR

It integrates payment directly into the system, eliminating external terminals and expanding what each screen can do.

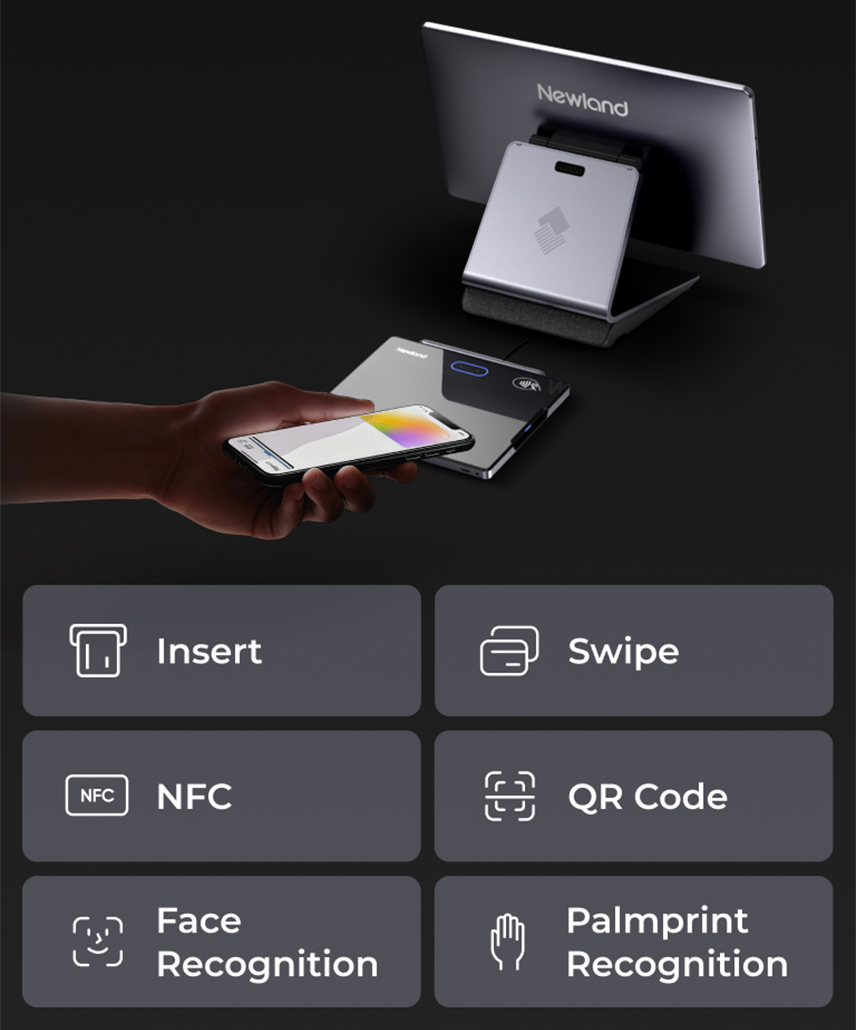

Embedded Payment

Handled through a built-in, modular payment hub, X70 supports a wide range of payment options—without the need for external terminals.

Insert
Swipe
NFC
QR Code
Facial Recognition
Palm Scan

Embedded Interaction

Extends beyond payment to support interaction across the service flow.

Payment Selector
PIN Pad
Promotional Display
Order View

Designed for
Real-World Interaction

Every detail is shaped to support how the device is viewed, used, and experienced—by both staff and customers.

Balanced
Angles
Operator-Focused Display
Customer-Facing Display

Designed to adapt naturally to different counter heights and viewing positions.

A 15.6-inch primary display designed for efficient, everyday operation.

A compact display designed for clear visibility and confident customer interaction.

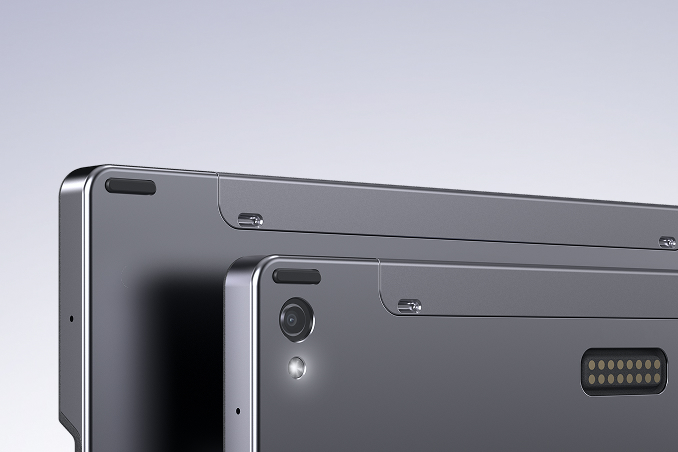

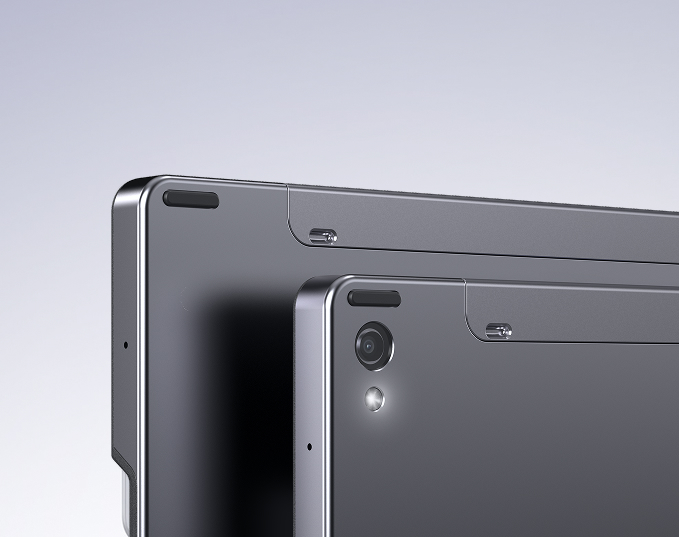

Optional Rear Camera

Adds flexibility for extended interaction scenarios when needed.

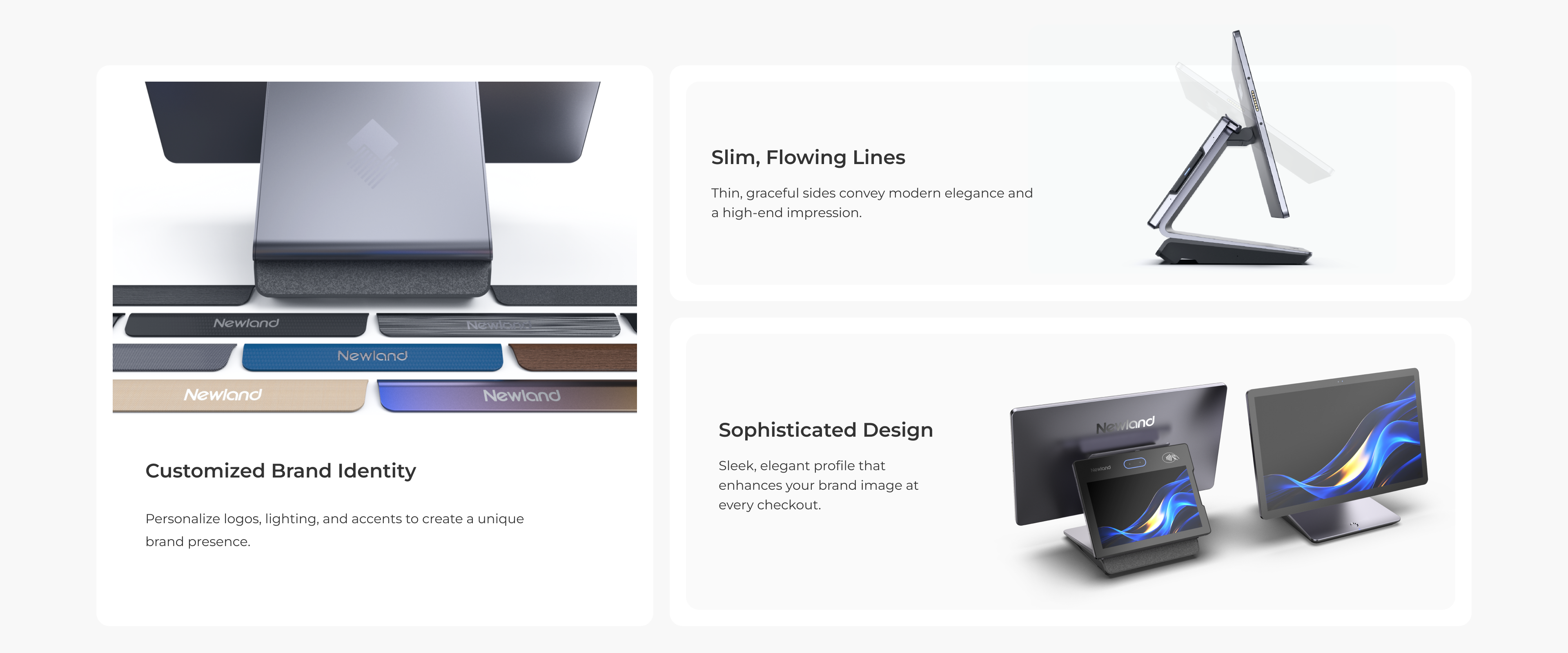

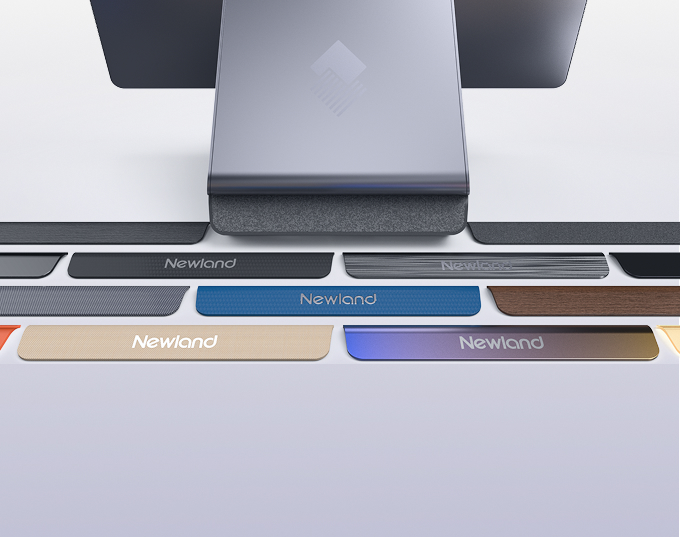

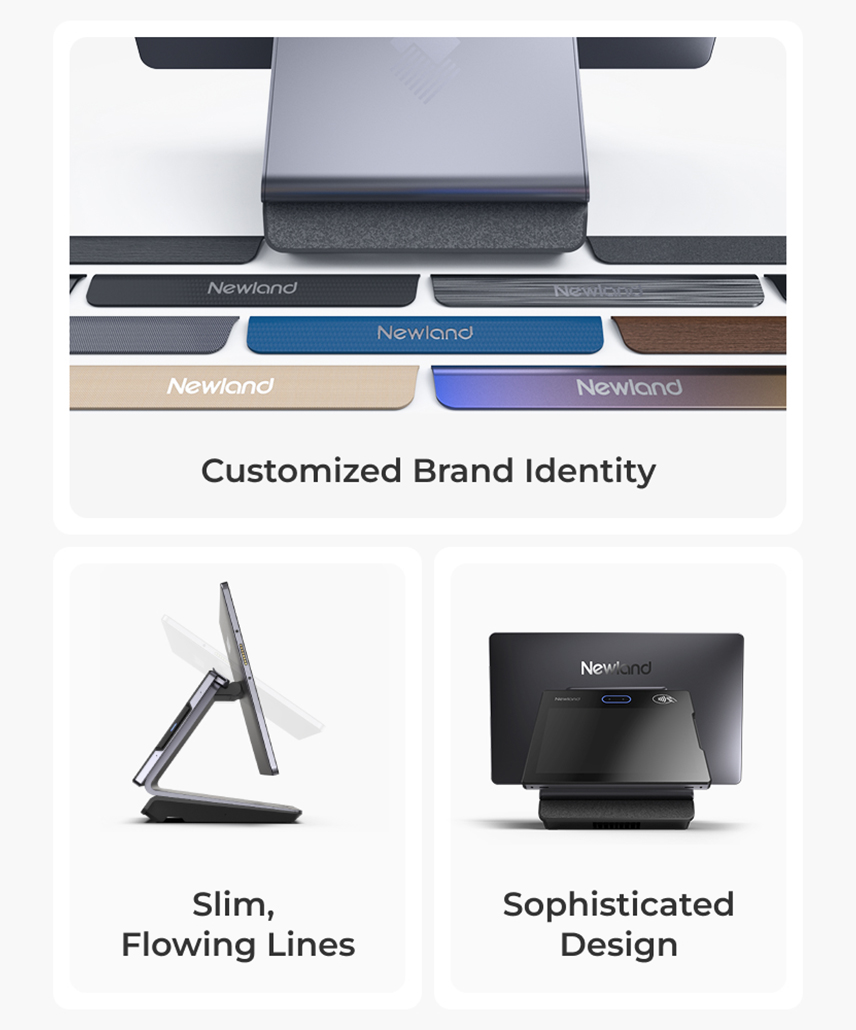

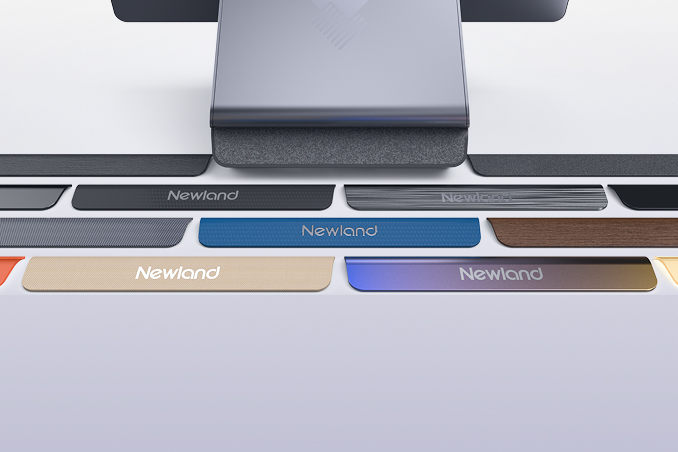

Customized Brand Identity

Personalize logos, lighting, and accents to create a unique brand presence.

Your Everyday
Operations Companion

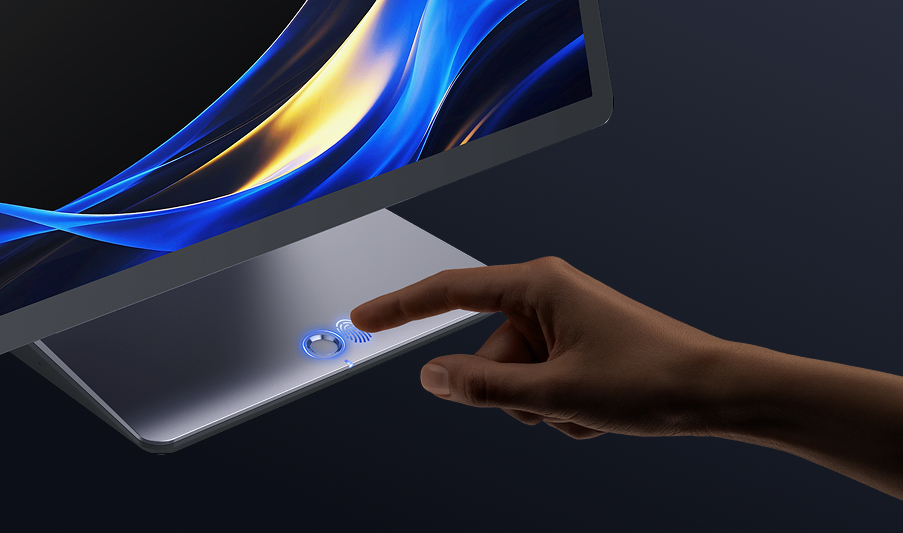

Fingerprint Unlock

Enables fast unlocking and role-based access control for authorized use.

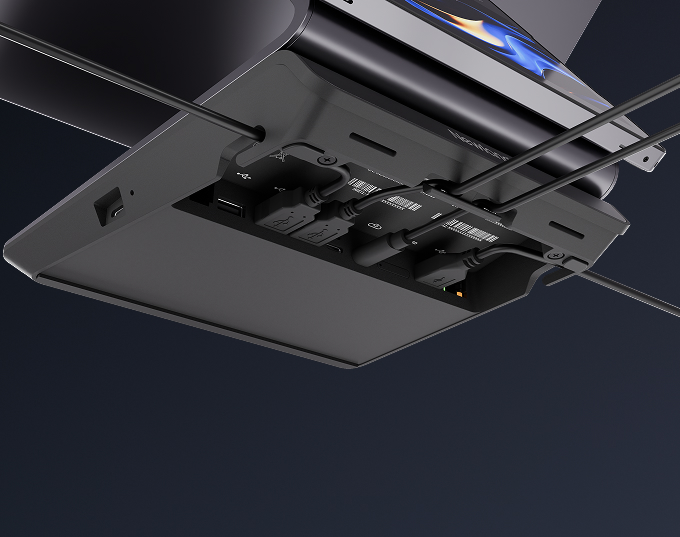

Hidden Cables

Keeps the countertop clean with concealed interfaces and flexible cable routing.

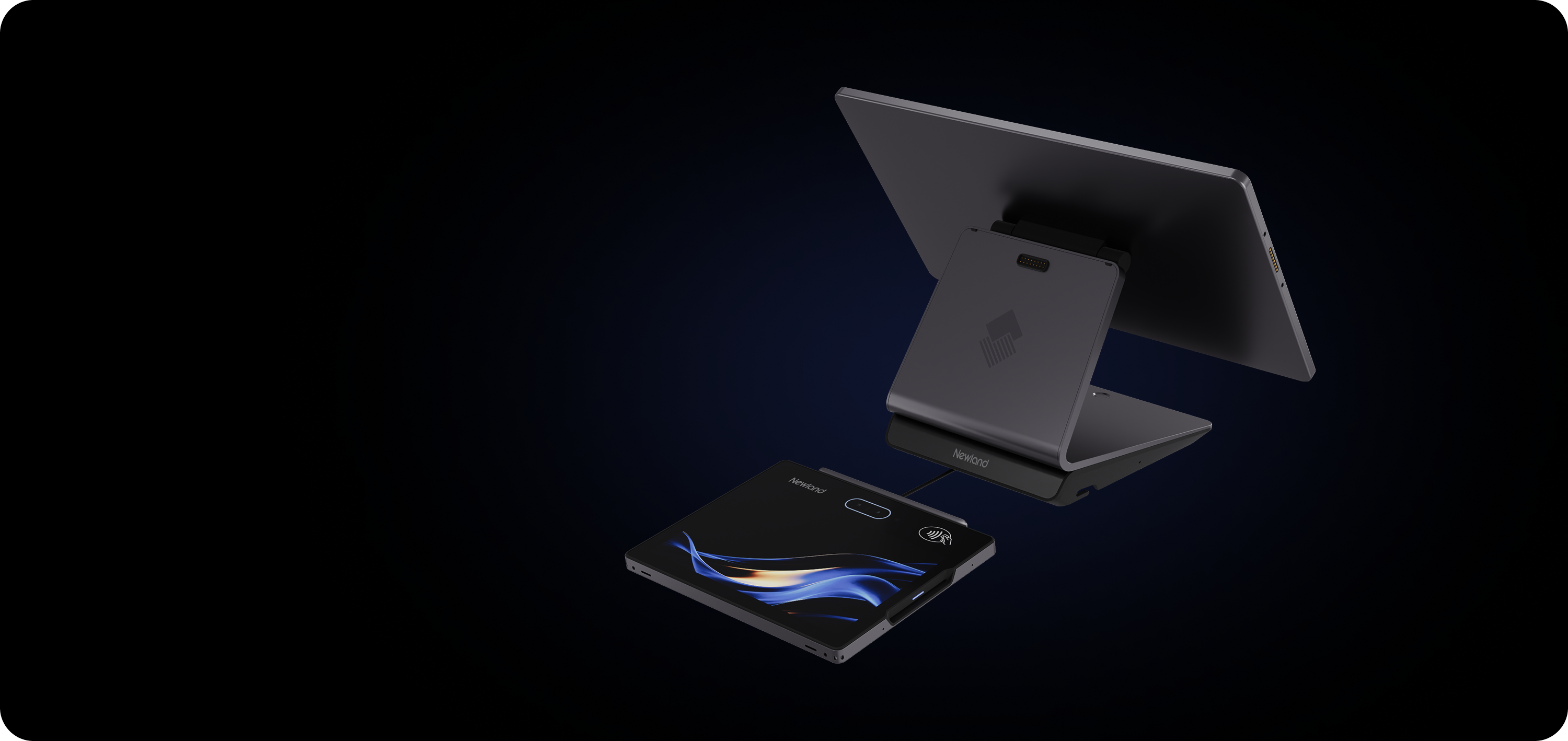

Magnetic Tablet Dock

Enables effortless pickup and secure placement of the detachable tablet during daily use.

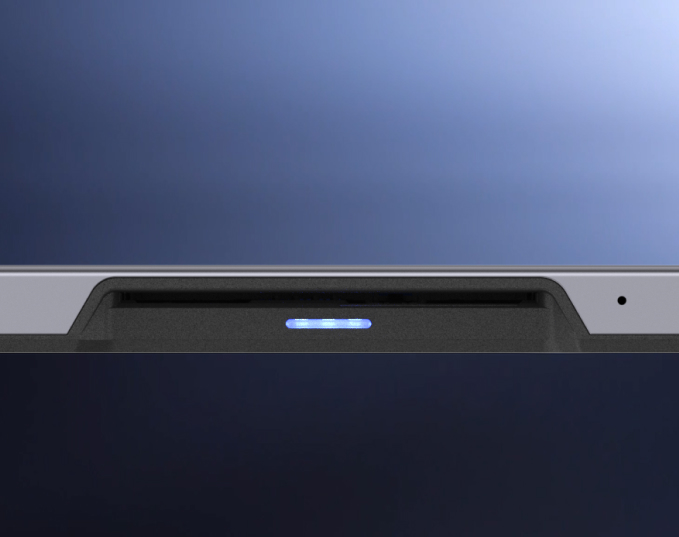

Pogopin Expansion

Supports flexible expansion with external modules including MSR and biometric accessories.

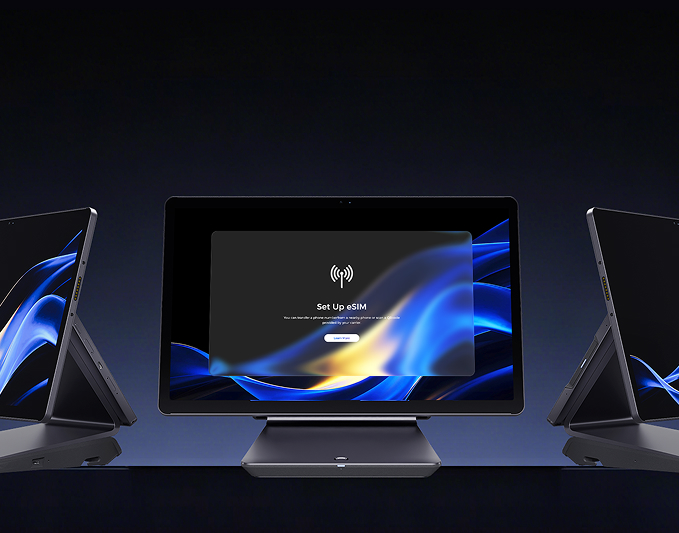

eSIM Supported

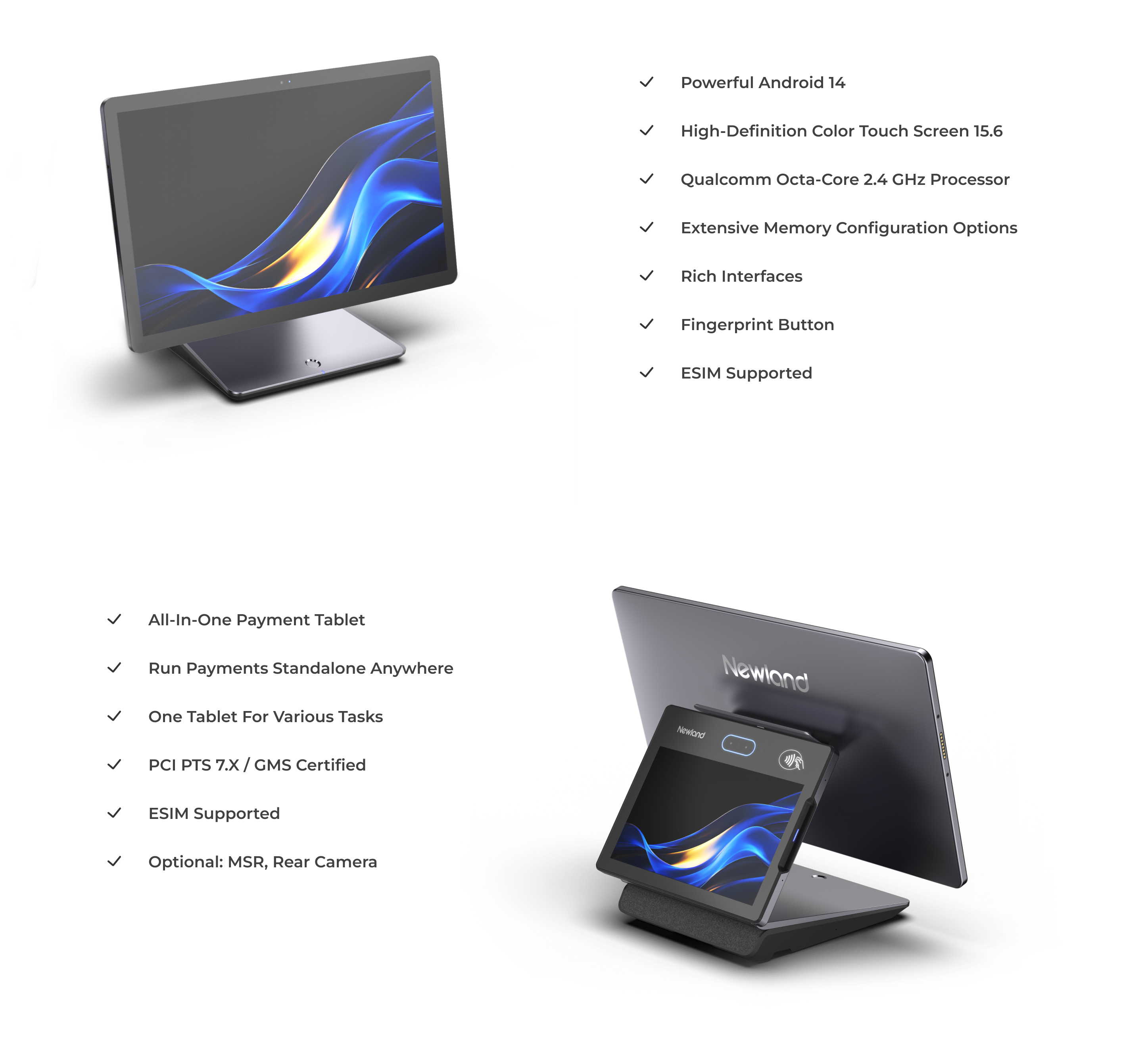

More Options. More Flexibility.

15.6" + 8"
15.6" + 10.1"

(Without Payment Module)

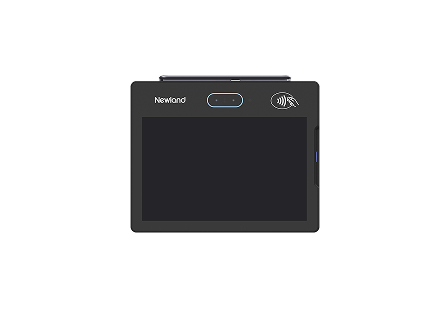

8"

(Tablet Only)

Tech Specs

X70 P70

OS

Android 14
Processor

Cortex Octa-core, 2.4 GHz
Memory

4GB RAM+64GB ROM

8GB RAM+128GB ROM (Optional)
Main Display

15.6”

1920x1080
Customer Display (Optional)

8”

1280 x 800
Communication

Ethernet 10/100/1000 Base T

Wi-Fi 2.4G & 5G

4G / 3G / 2G

Bluetooth 5.0
Positioning

GPS, GLONASS, GALILEO, BEIDOU
Camera

FF 8MP
Fingerprint (Optional)

MOH 80 x 64
Audio

2* Speaker 2W

2* Microphone
Keypad

1* Power button
Peripheral Ports

R1* RJ11 (Cash Drawer)

1* RJ45 (LAN) *1

3* Type-C (Power+2*USB 2.0)

4* USB-A (3USB 2.0+1* USB 3.0)

1* 16 Pins_USB 3.0

2* 8 Pins_USB 2.0
Power Supply

Input: 100-240V AC 50/60Hz

Output: 20.0V DC, 3.25A
Dimensions

368.5mm (L) x 199mm (W) x 271mm (H)
Weight

2550g
Card Slot

2* Nano SIM, 1* Nano SIM+1* Micro SD

1* eSIM, 1* MicroSD, 1* Nano SIM (Optional)
Certifications

CE, RoHS, CB, FCC, GMS, EN18031

Please contact Newland NPT sales representative for the latest certification status.

Download

OS

Android 14
Processor

AP: Cortex Octa-core, 2.4 GHz

SP: Cortex-M3 security core
Memory

4GB RAM+64GB ROM
Main Display

8”

1280x800
Communication

Wi-Fi 2.4G & 5G

4G / 3G / 2G

Bluetooth 5.0
Positioning

GPS, GLONASS, GALILEO, BEIDOU
Camera

8MP FF front camera, supports 1D/2D code payment

2MP FF IR camera, supports facial camera

8MP AF rear camera, supports 1D/2D code payment, with flash light
Card Reader

Contactless Card Reader

Smart Card Reader

Magnetic Card Reader
Sensor

Vibration Motor

G-Sensor

Optical sensor
Peripheral Ports

1* Type-C

1 Set Pogo Pin (16 Pins_USB 3.0)
Audio

2* Speaker 2W

2* Microphone
Battery

Polymer Battery, 3.8V/4000mAh/15.2Wh
Power Supply

Input: 100-240V AC 50/60Hz

Output: 5.0V DC, 3.0A
Dimensions

200mm (L) x 160mm (W) x 11.5mm (H)

200mm (L) x 166mm (W) x 26.1mm (H) (Built-in MSR)
Weight

540g

580g (Built-in MSR)
Card Slot

2* Nano SIM, 1* Nano SIM+1* Micro SD

1* Micro SAM

1* eSIM, 1* MicroSD, 1* Nano SIM (Optional)
Certifications

PCI PTS 7.x, EMV L1/L2, EMV Contactless L1, PayPass, American ExpressPay, Discover D-PAS, UnionPay QuickPass, JCB, TQM, PBOC L2, EN18031, CE, CB, RoHS, Felica, MIC, FCC, PSTI, RNIB

Please contact Newland NPT sales representative for the latest certification status.
