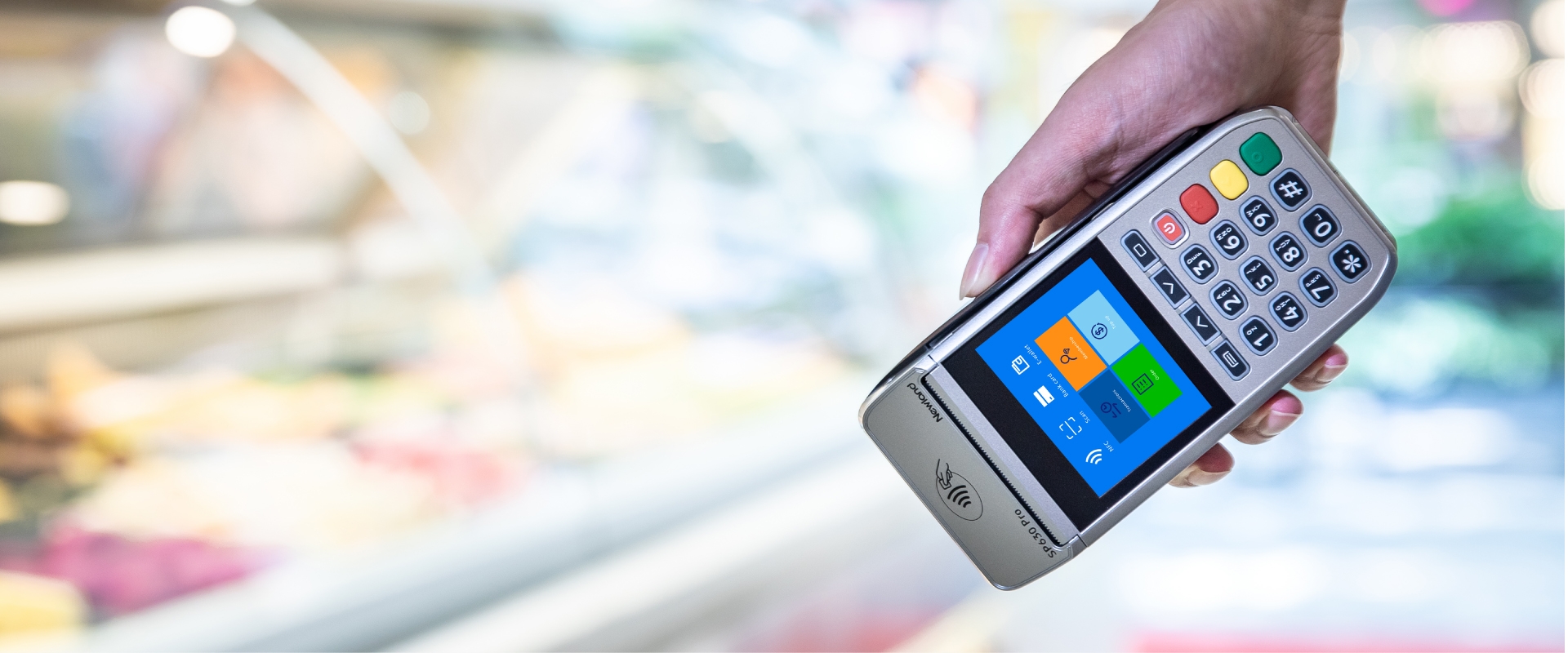

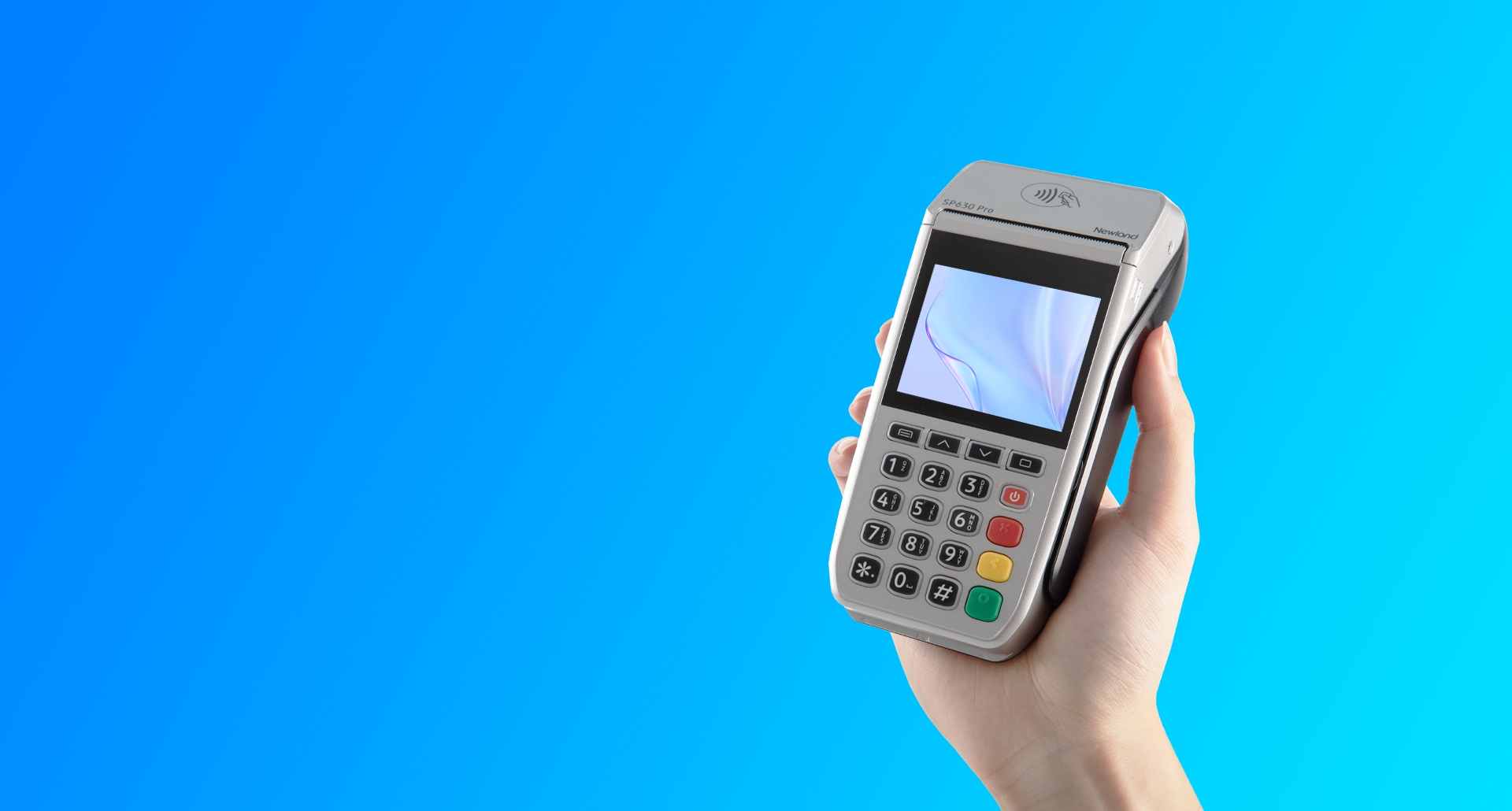

Classic handheld POS terminal
Which is twice better than the last generation, ensuring the seamless operation of transactions.
New generation of CPU evokes
the stronger performance
Up to optional
512MB RAM + 512MB FLASH memory
adds more ambiance to the environment to ensure the frictionless user experience in dark.

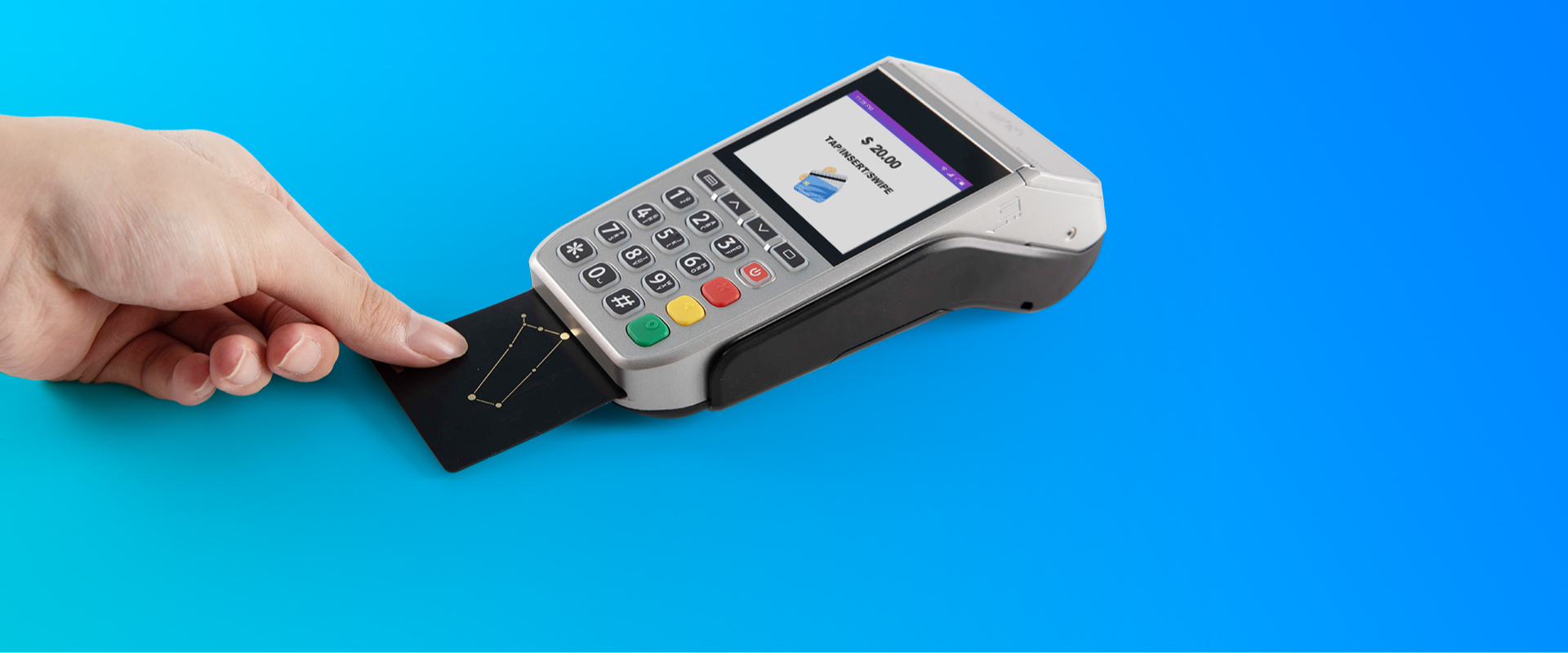

Magnetic stripe card reader, IC card reader, The life span is more than 500,000 times. The life span of the physical key is more than 500,000 times.
(still supports 2G /3G communication)
adapts to the wireless communication in most regions all over the world.
SP630 Pro comes with the latest generation USB Type-C slot, which is a lot more efficient and convenient!
With the world's highest level of payment security
PCI 6.X and EMV 3.0 compliance

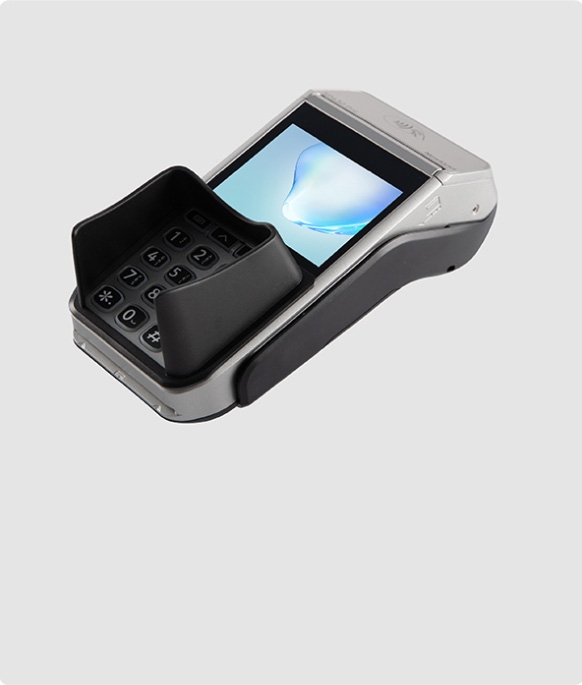

protects from entering the PIN

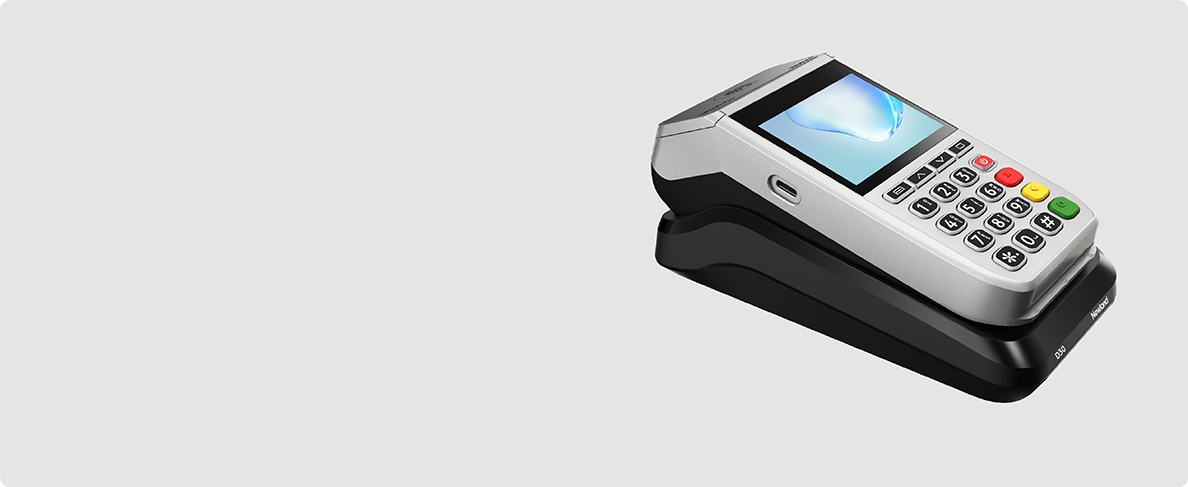

provides a stable supporting function
on the countertop while checking out.
with charging capability and multiple peripherals connectivity.
Fully certified and PCI-compliant terminal range for any business need or customer experience. SP630 Pro is PCI-PTS 6.x certified and EMV CL 3.0, satisfying the latest hardware and software security requirements.
Linux
32-bit ARM Cortex-A7 secure processor, 1.2GHz
256MB RAM, 256MB FLASH
512MB RAM, 512MB FLASH(Optional)
MicroSD(Optional, up to 32GB)

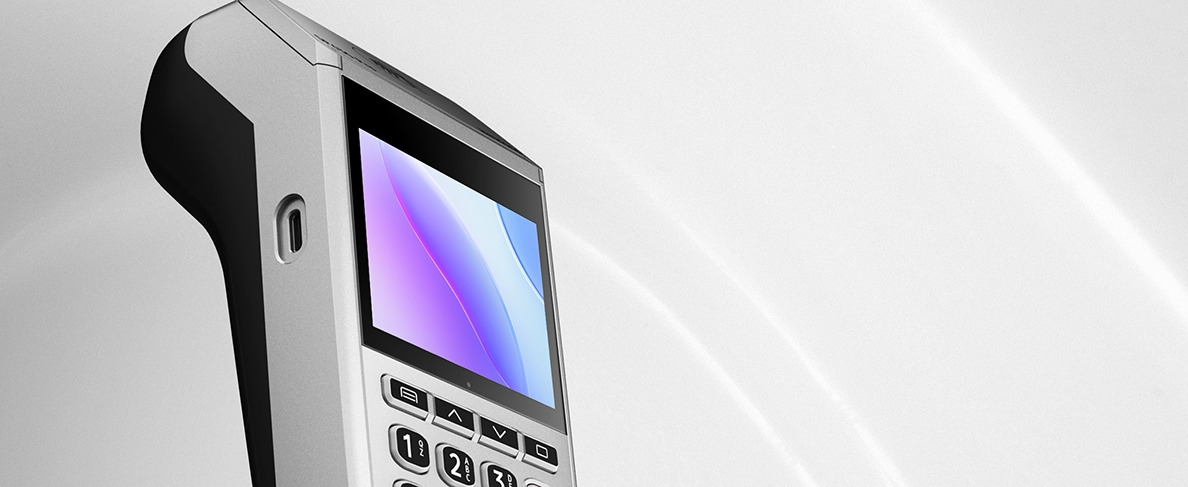

2.8-inch TFT full color LCD display,
resolution of 320 x 240
Resistive touchscreen, support electronic signature(Optional)
4G/3G/2G
Bluetooth(Optional)
WIFI (802.11 b/g/n)(Optional)
Magnetic Card Reader,
Smart Card Reader,

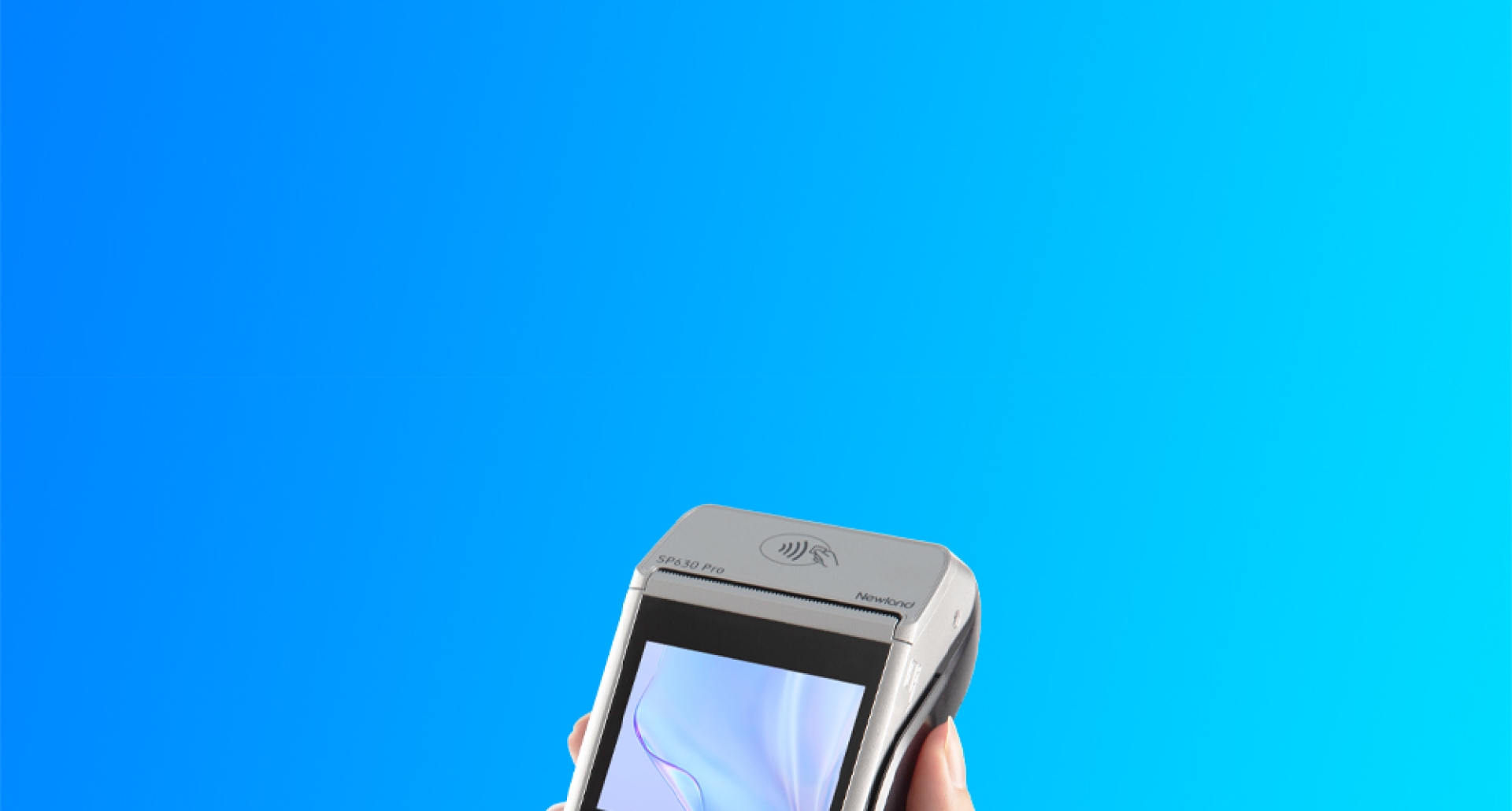

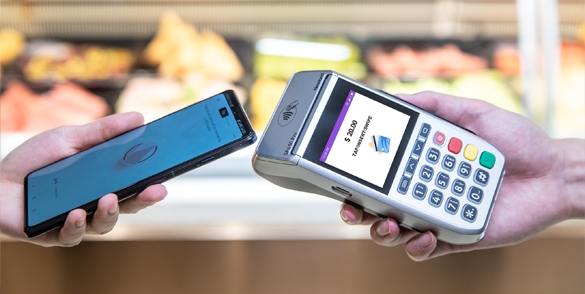

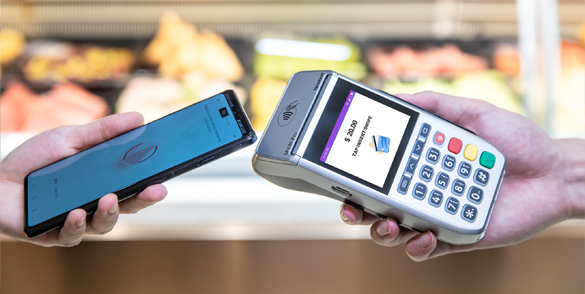

Contactless Card Reader
Built-in rear scanner, support 1D/2D code payment
Built-in buzzer

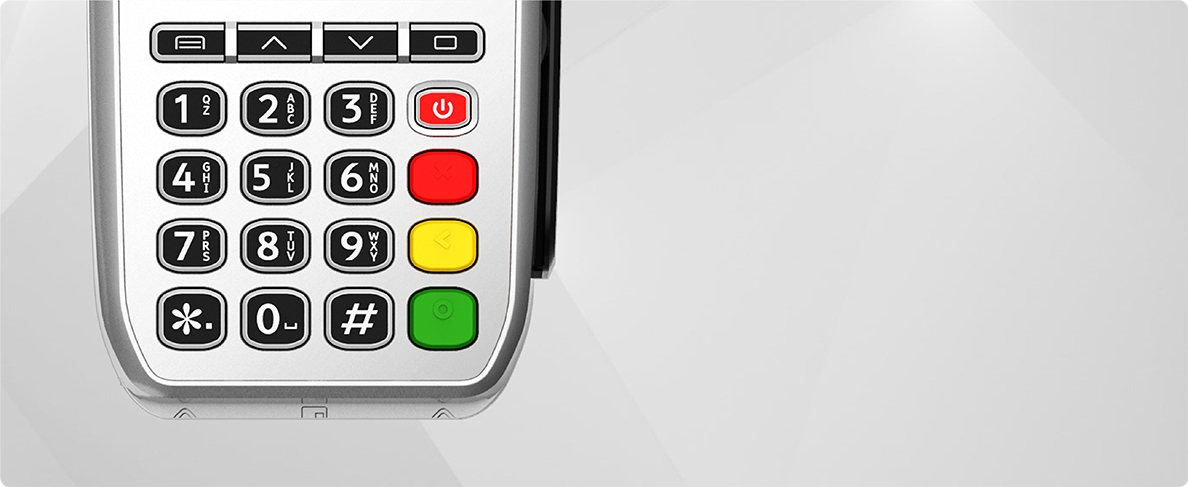

10 x numeric keys, 9 x function keys, 1 x power button
Backlight(Optional)
High-speed thermal printer, 32lps
Paper roll diameter: 40mm
1 x Type-C(OTG)
2 x SIM, 2 x SAM
Li-ion battery,
3.6V/3300mAh/11.9Wh(Optional)
Li-ion battery, 3.6V/2500mAh/9Wh
Input: 100-240V AC, 50Hz/60Hz, 0.3A
Output: 5.0V DC, 2.0A
Flexible privacy shield(Optional)
Stylus(Optional)
163mm (L) x 79mm (W) x 54mm (H)
350g including battery
Operating temperature: 0°C～40°C (32°F~104°F)
Storage temperature: -20°C～60°C (-4°F~140°)
Relative humidity: 5%～93% (Non-condensing)
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay,Discover D-PAS, UnionPay QuickPass, TQM, CE, RoHS
