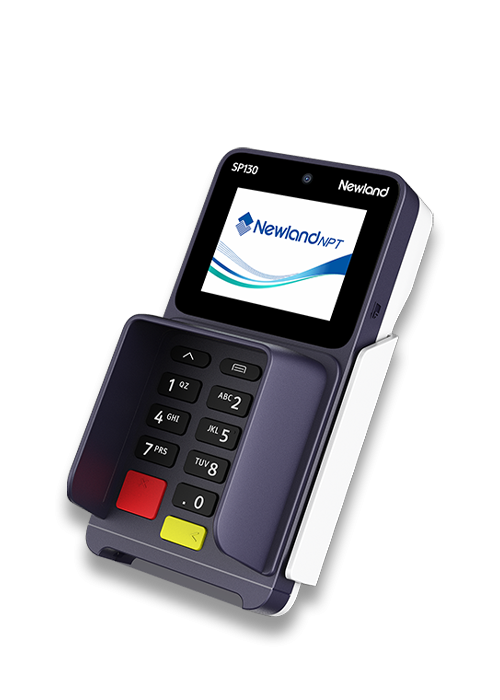

Countertop PIN Pad
RTOS
32-bit high performance secure processor
512KB RAM, 8MB Flash
2.4-inch TFT full color LCD display,
resolution of 320 x 240
Optional resistive touchscreen, support electronic signature
NFC
Optional mag-stripe card
Optional chip card
Built-in buzzer
0.3M pixel front scanner, support 1D/2D code payment
10 x numeric keys, 6 x function keys
1 x RS232 (RJ11) with spiral cable
Optional 1 x USB-A
1 x SAM
5.0V DC, 0.5A
Flexible privacy shield Optional stylus
145mm (L) x 87.6mm (W) x 62mm (H)
About 265g (full configuration)
Operating temp: 0℃～40℃ (32℉~104℉)
Storage temp: -20℃～60℃ (-4℉~140℉)
Relative humidity: 5%～93% (Non-condensing)
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, JCB, TQM, CE, RoHS
