VB90S

Payment Sound Box

Revolutionary Products,
Redefining Sound Box

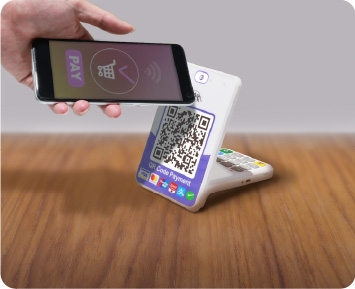

Unlock Multiple Payment Choices

Supporting multiple payment methods, allowing customers to pay their way, simplifying the checkout process.

NFC
HCE
IC Card
QR-Code

Flexible Configuration Options

Offers a variety of optional modules, enabling customers to select according to their specific business needs.

Static Code Plate
3.5-inch color LCD display
Camera

IC card reader

Customized Voice Broadcast

Customized voice broadcast to update customers on the latest transaction results during the transaction.

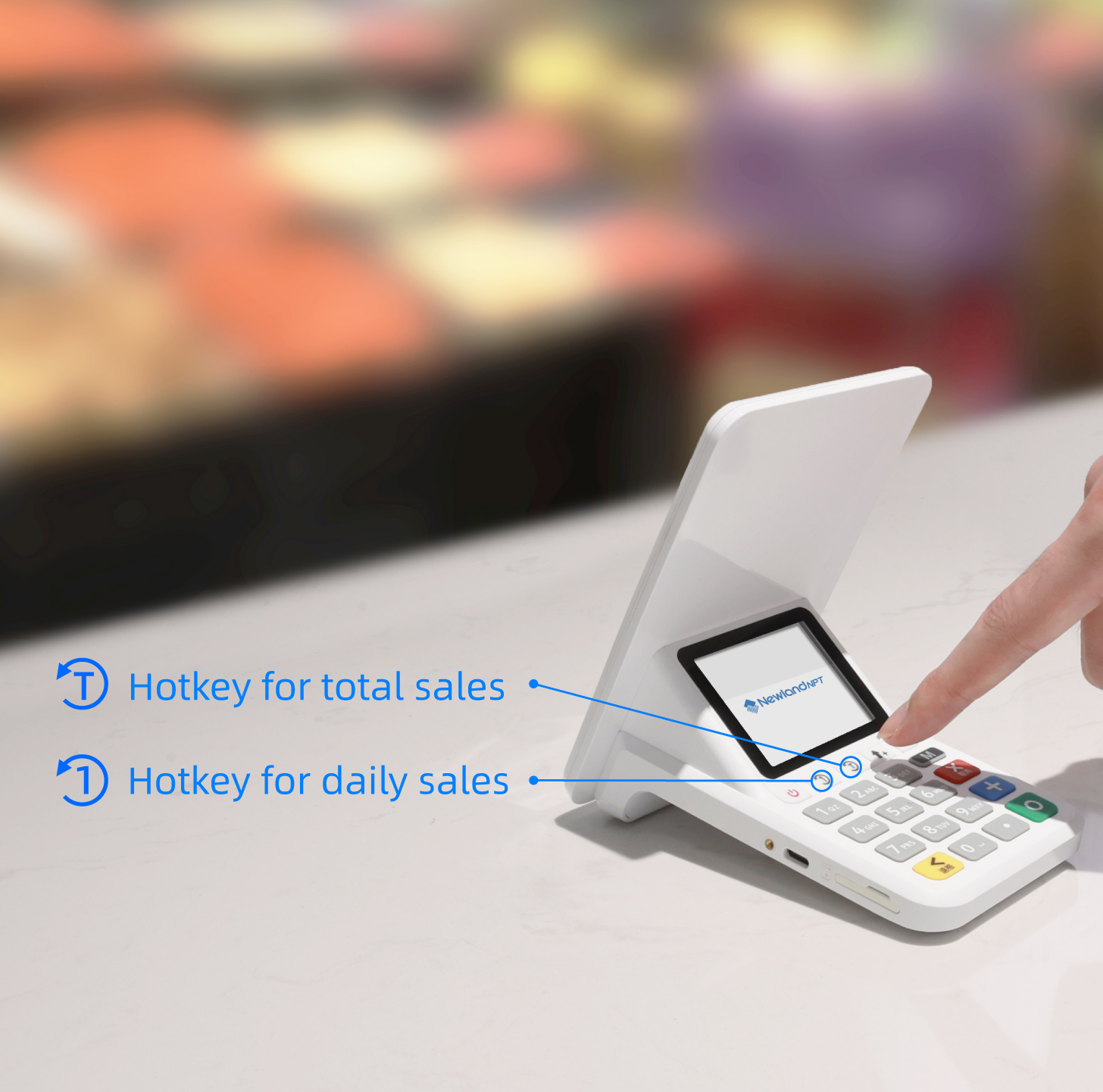

Quick Bill Inquiry - Efficient and Simple

With dedicated buttons for sales and transaction inquiries, accessing the needed info has never been easier or faster.

Fast, Reliable Connectivity

Ensuring seamless, stable, and delay-free transactions through support for various communication methods.

High-Endurance Battery - Always Ready

Equipped with a high-endurance battery, ensuring long-lasting performance and availability whenever needed.

Ergonomic Design Feature

Discover the exceptional comfort of VB90s with its unique structural angles, ultra-thin body, and diverse ergonomic designs for a premium user experience.

Business Scenarios

Market | Restaurant | Snacks | Convenience Store





Technical Specifications

OS
RTOS
Processor
ARM Cortex-A5 high performance processor + secure processor
Memory
8MB RAM, 20MB FLASH
Main Screen
2.4-inch color LCD display,
resolution of 320 x 240
Customer Display (Optional)
3.5-inch color LCD display,
resolution of 320 x 480,
support displaying dynamic QR code
Communication
4G
Wi-Fi (802.11 b/g/n) (Optional)
Card Reader
Contactless Card Reader
Smart Card Reader (Optional)
Camera (Optional)
0.3 MP front camera, support 1D/2D code payment
Audio
1 x loudspeaker, clear and bright sound; Support preset voice files
Keypad
10 x numeric keys, 10x function keys, 1 x Power button, support PIN entry
Peripheral Ports
1 x Type C port
Card Slots
1 x SIM
Battery
Li-ion battery, 3.7V 2000mAh/7.4Wh
Power Supply (Optional)
Input: 100~240V AC 50/60Hz
Output: 5.0V DC, 1.0A
Dimensions
134mm(L)*95mm(W)*133.5mm(H)
Weight
260g
Environment
Operating temperature: 0℃～50℃ (32℉~122℉)
Storage temperature: -20℃～70℃ (-4℉~158℉)
Relative humidity: 5%～95% (Non-condensing)
Certifications
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, JCB, TQM, CE, RoHS, BIS, RUPAY
