Technical Specifications

•

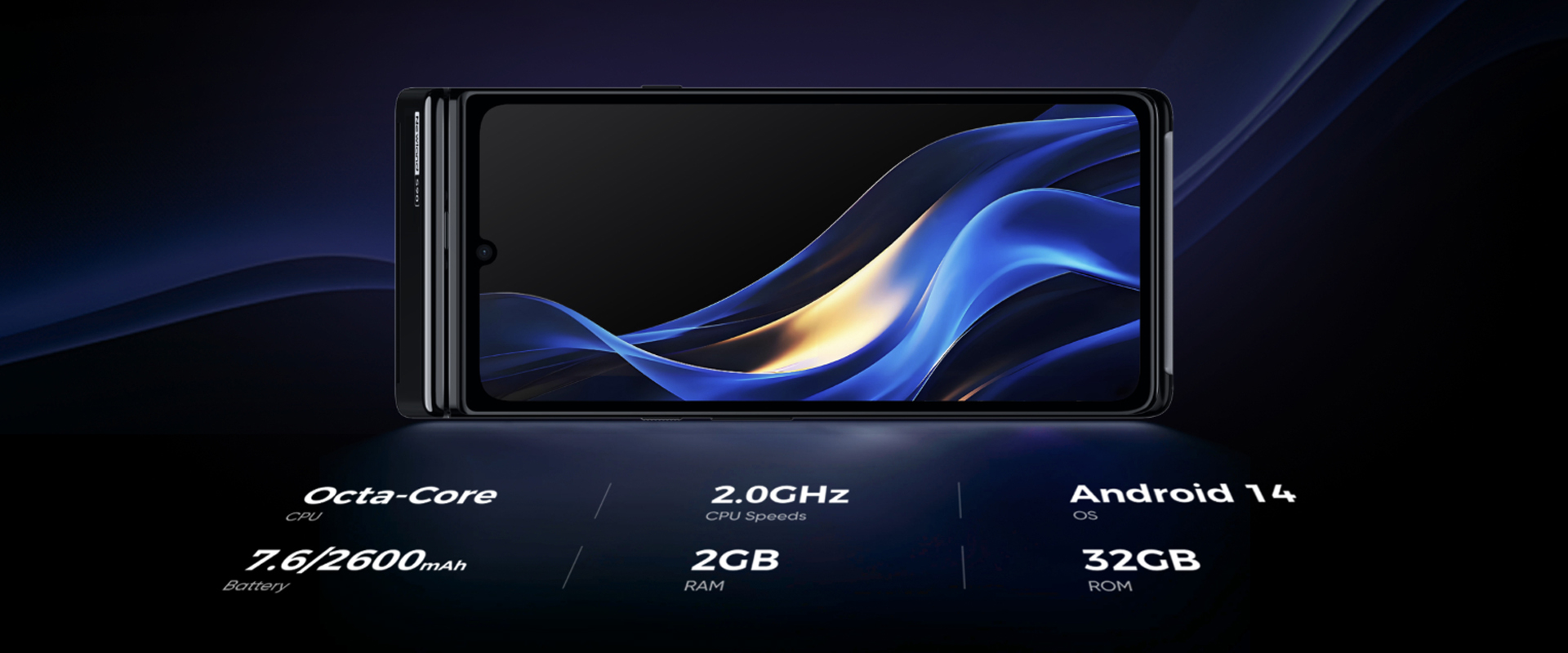

  OS

  Android 14

•

  Processor

  AP: Cortex Octa-core (4xA73 + 4xA53), Maximum 2.0 GHz
  SP: Cortex-M3 security core,192MHz

•

  Memory

  2GB RAM, 32GB FLASH
  4GB RAM, 64GB FLASH (Optional)
  MicroSD card slot up to 512GB

•

  Display

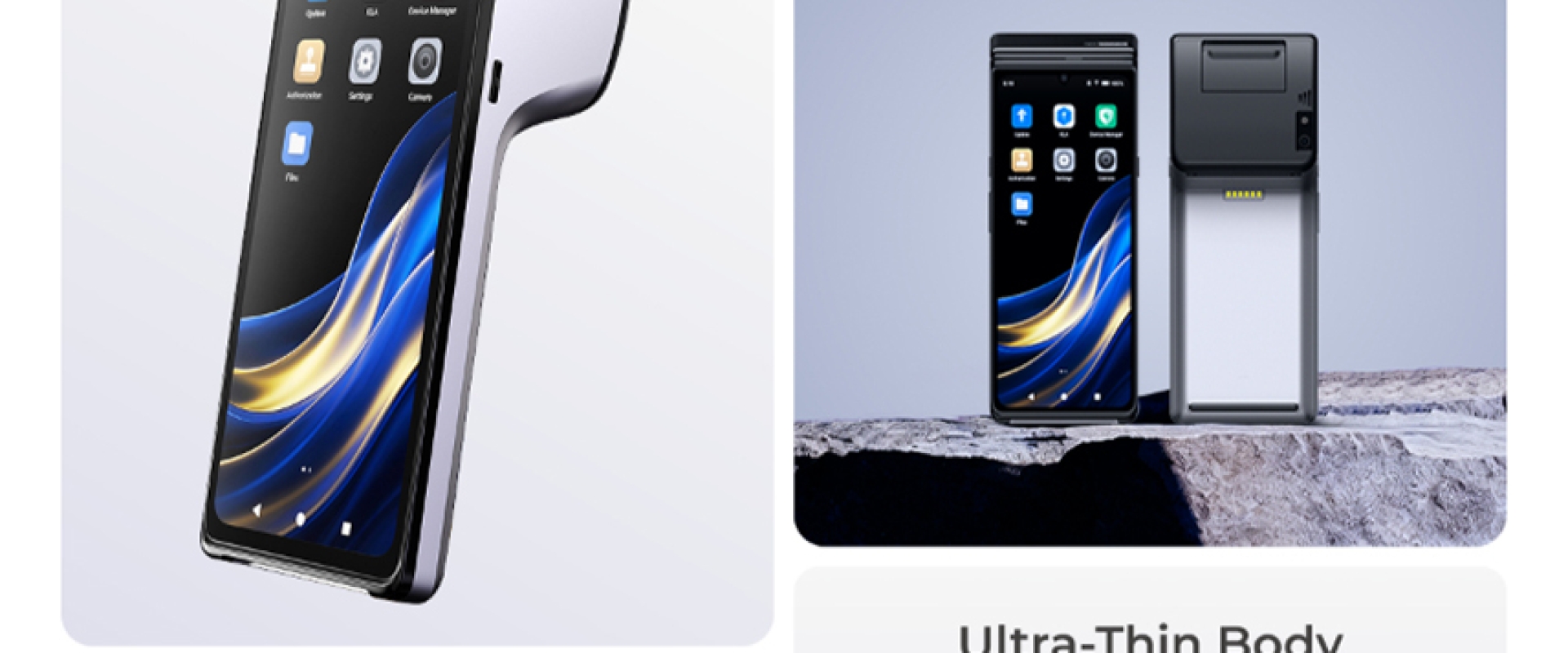

  6.75-inch TFT full color LCD display, resolution of 720 x 1600, with adjustable backlight, capacitive multi-touch screen, support electronic signature

•

  Customer Display

  2.5-inch, with touchscreen functionality (Optional)

•

  Wireless Communication

  4G / 3G / 2G
  2.5-inch, with touchscreen functionality Wi-Fi (802.11 a/b/g/n/ac) 2.4G&5G, Bluetooth 5.0

•

  Positioning

  AGPS / GPS / GLONASS / BEIDOU / GALILEO

•

  Magnetic Card Reader

  Triple track, bi-directional, conforming to ISO 7810/7811/7813

•

  Contactless Card Reader

  EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica, HCE

•

  Smart Card Reader

  EMV L1/L2, conforming to ISO 7816, 1.8V/3V/ 5V, synchronous & asynchronous, T=0 & T=1

•

  Camera

  2 MP front camera, support 1D/2D code payment
  5 MP autofocus rear camera with flashlight, support 1D/2D code payment
  13 MP autofocus rear camera with flashlight, support 1D/2D code payment (Optional)
  Professional code scanner, hardware decoding , support 1D & 2D code payment (Optional)

•

  Audio

  1 x Speaker ,1 x Microphones
  1 x Speaker ,2 x Microphones (Optional)

•

  Keypad

  1 x power button, 1 x VOL+,1 x VOL-, 1 x function button

•

  Printer

  High-speed thermal printer, 80mm/s
  Paper roll diameter: 40mm
  Paper width: 58mm

•

  Peripheral Ports

  1 x TYBE-C port, 6 POGO PIN

•

  Card Slots

  1 micro SIM +1 Mini SIM +1 PSAM + 1 SD
  1 micro SIM + 2 PSAM + 1 SD (Optional)
  1 micro SIM + 2 PSAM + 1 SD + 1 eSIM (Optional)

•

  Sensor

  Vibration Motor / G-Sensor / Light-Sensor

•

  Battery

  Polymer Battery: 7.6/2600mAh 19.76Wh
  Polymer Battery: 7.6/3500mAh 26.6Wh (Optional)

•

  Power Supply

  Input: 100-240V AC 50/60Hz
  Output: 5.0V DC, 2.0A

•

  Dimensions

  190mm (L) x 80.5mm(W) x 50mm(H)
  (Minimum hight: 20mm)

•

  Weight

  386g including battery

•

  Environment

  Operating temperature: -10℃～50℃ (14℉~122℉)
  Storage temperature: -20℃～60℃ (-4℉~140℉)
  Relative humidity: 5%～95% (Non-condensing)

  Charging below 0℃ is not recommended as it will affect battery performance.

•

  Certifications

  EMV L1, EMV CL1, PCI 7.x, EMV L2, PayPass, PayWave, ROHS, TQM, AMEX, D-PAS, CE, FCC, JCB, UnionPay QuickPass, ATEX

  Please contact Newland NPT sales representative for the latest certification status.
