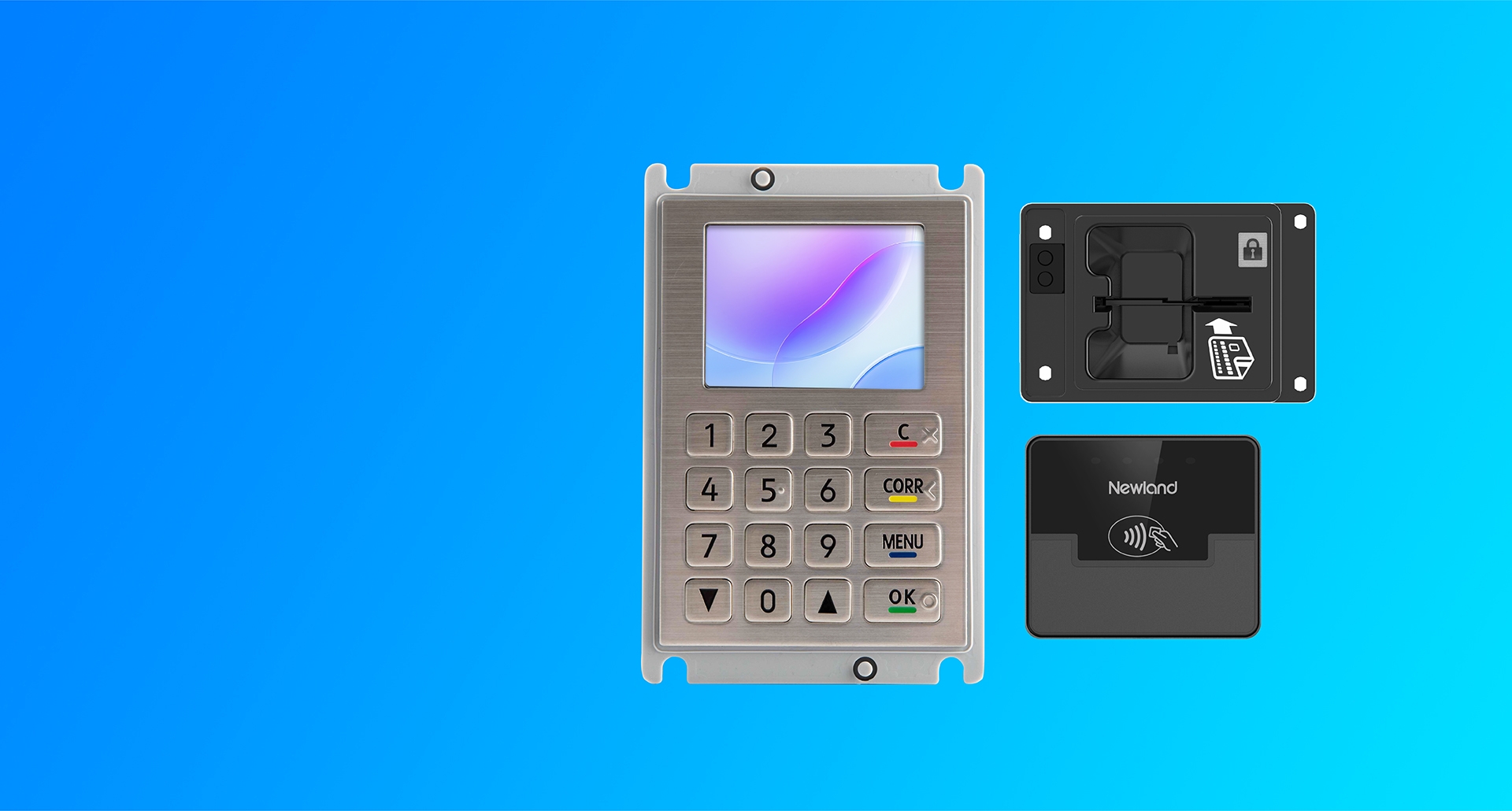

Modular Unattended
Payment Terminal
U900 is our latest addition to the unattended
payment terminal series.

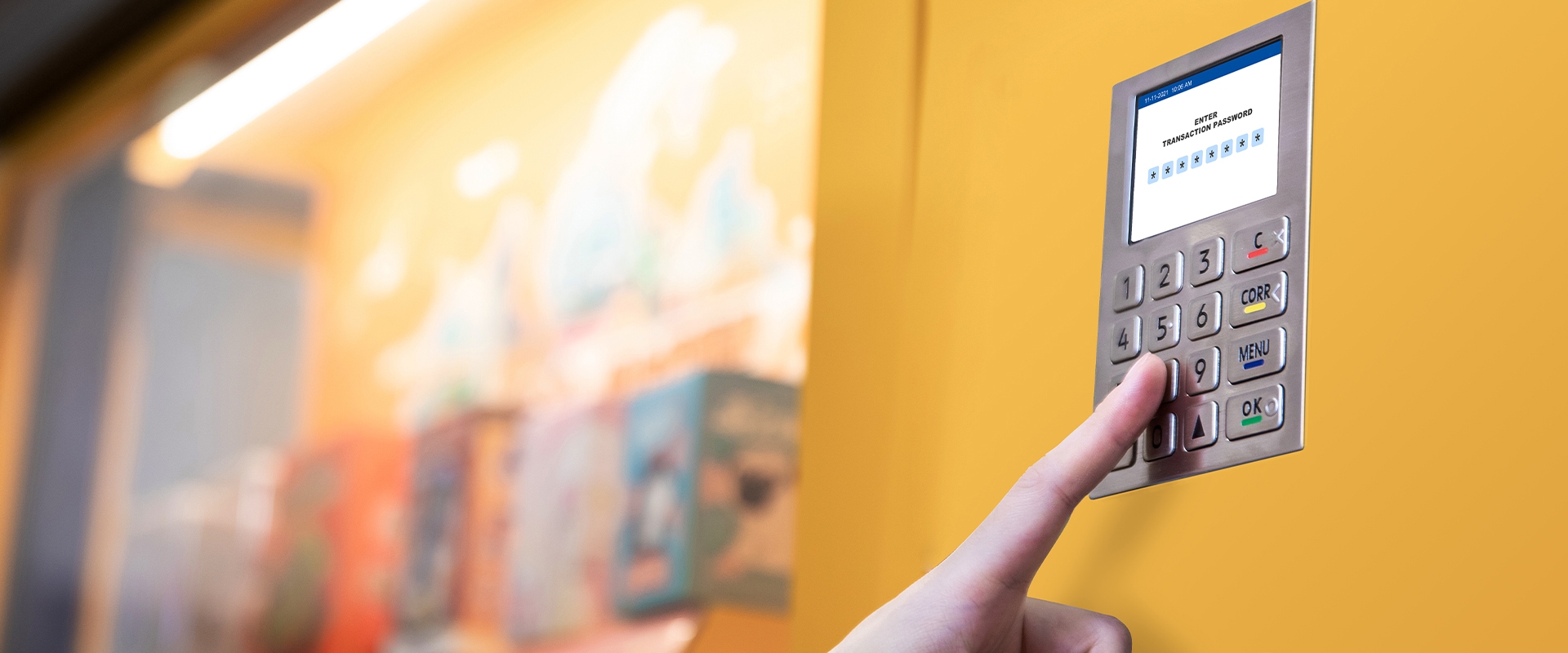

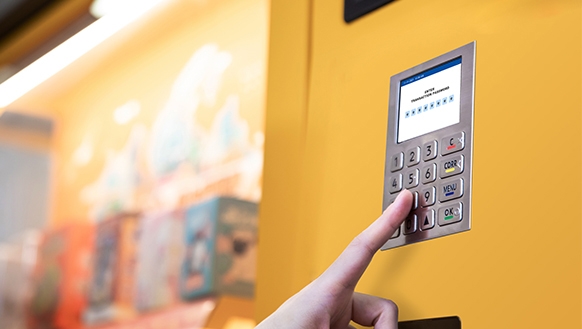

With an anti-vandalic metal keypad and highly visible color display, it ensures secure payment acceptance for heavy duty self-service use cases from transport ticket vending to gas pumps and on-street parking.

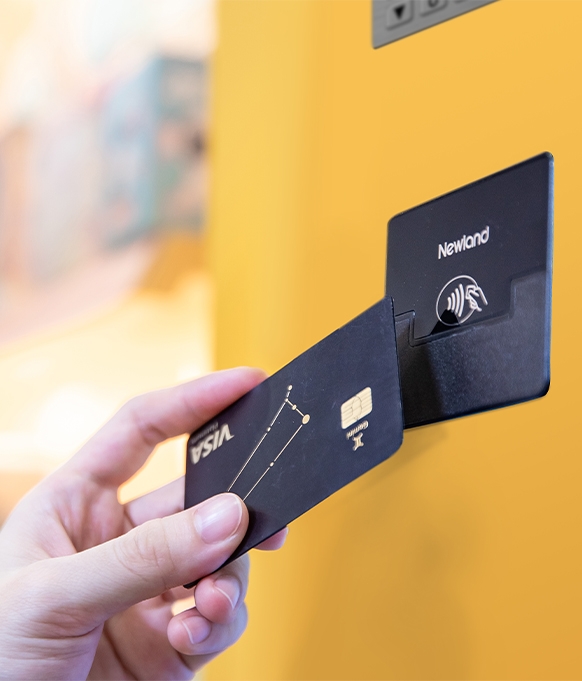

Bringing together an easily accessible contactless card reader with the secure PIN entry device, convenience and speed of service is guaranteed.
Multiple communication options
And interfaces for easy integration with
Any type of kiosk system.
approved, durable and reliable

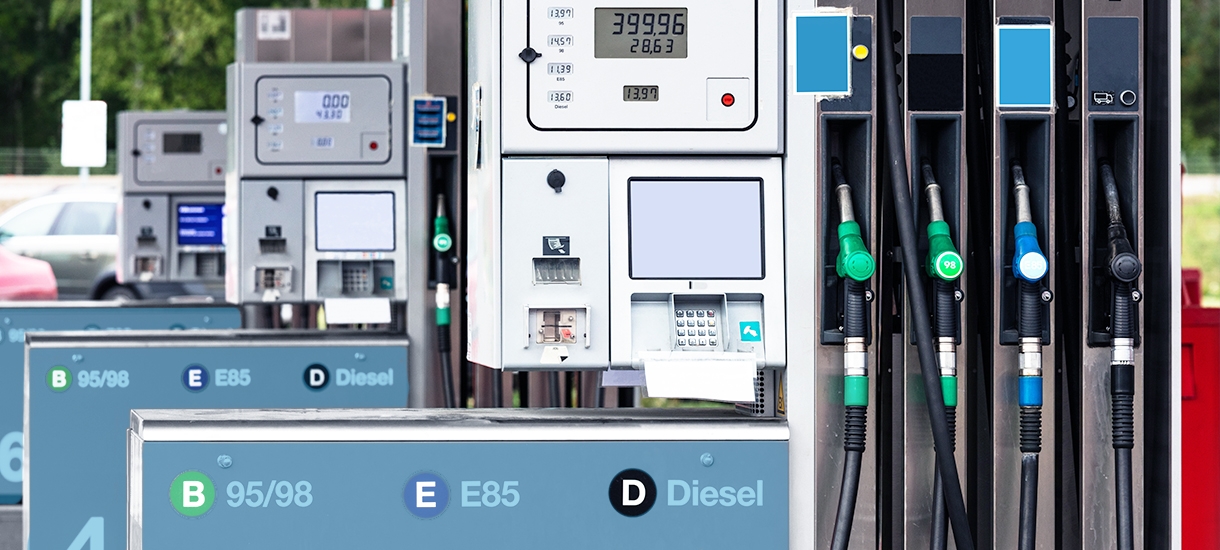

Ticketing丨Gas Station丨Laundromat丨On and Off-Street Parking
Linux
32-bit high performance secure processor
128MB RAM, 128MB FLASH
2.8-inch full color LCD display,
resolution of 320 x 240
10 x numeric keys,
6 x function keys,

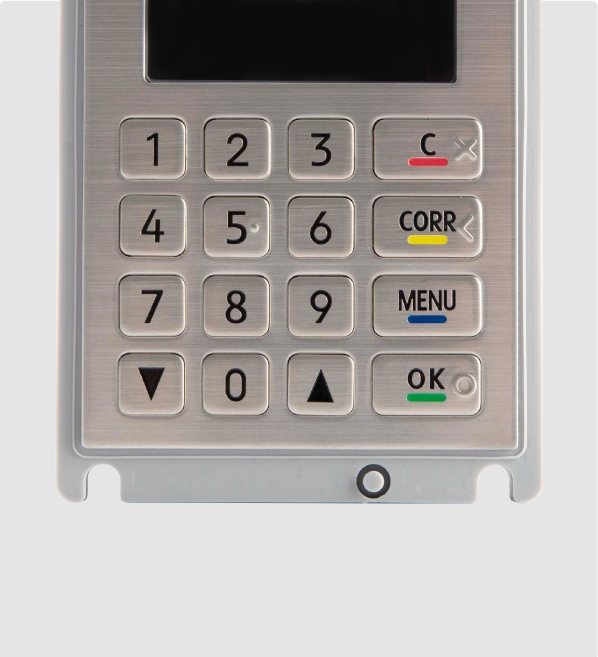

Metal keypads
Ethernet 10/100 Base - T
(Optional) WIFI (802.11 b/g/n)
(Optional) Bluetooth 2.1/4.2
Mag-stripe card(Optional),
Chip card(Optional),
Contactless Card

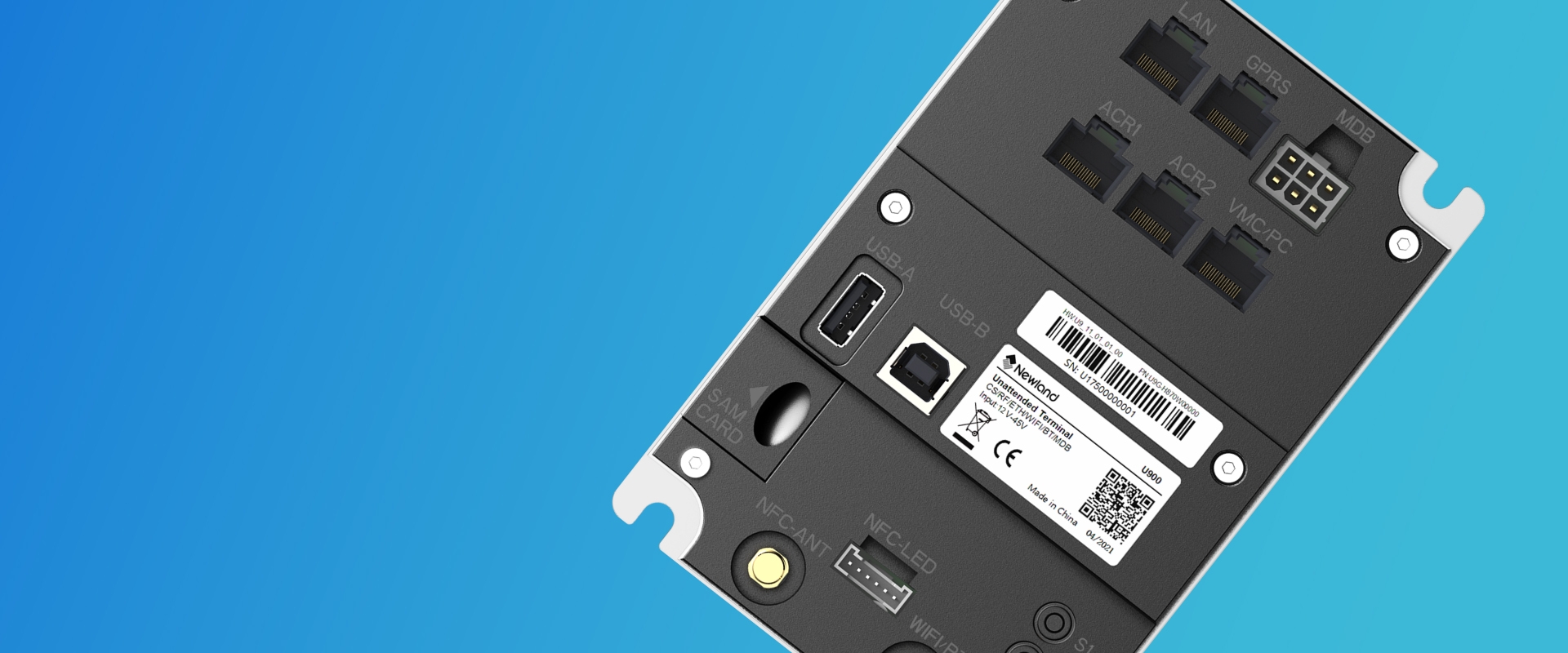

1 x USB-A (Host),
1 x USB-B (Device),
1 x LAN, 1 x MDB,
4 x RS232(RJ45),
2 x SMA
1 x SAM
Built-in buzzer
12V ~ 45V DC
143mm (L) x 92mm (W) x 44mm (H)
467g
IP65 and IK09
Operating temperature: -20°C~65°C (-4°F～149°F)
Storage temperature: -20°C~70°C (-4°F～158°F)
Relative humidity: 95% Maximum noncondensating
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay,Discover D-PAS, UnionPay QuickPass, TQM, CE, RoHS
