U200

Compact Unattended Terminal

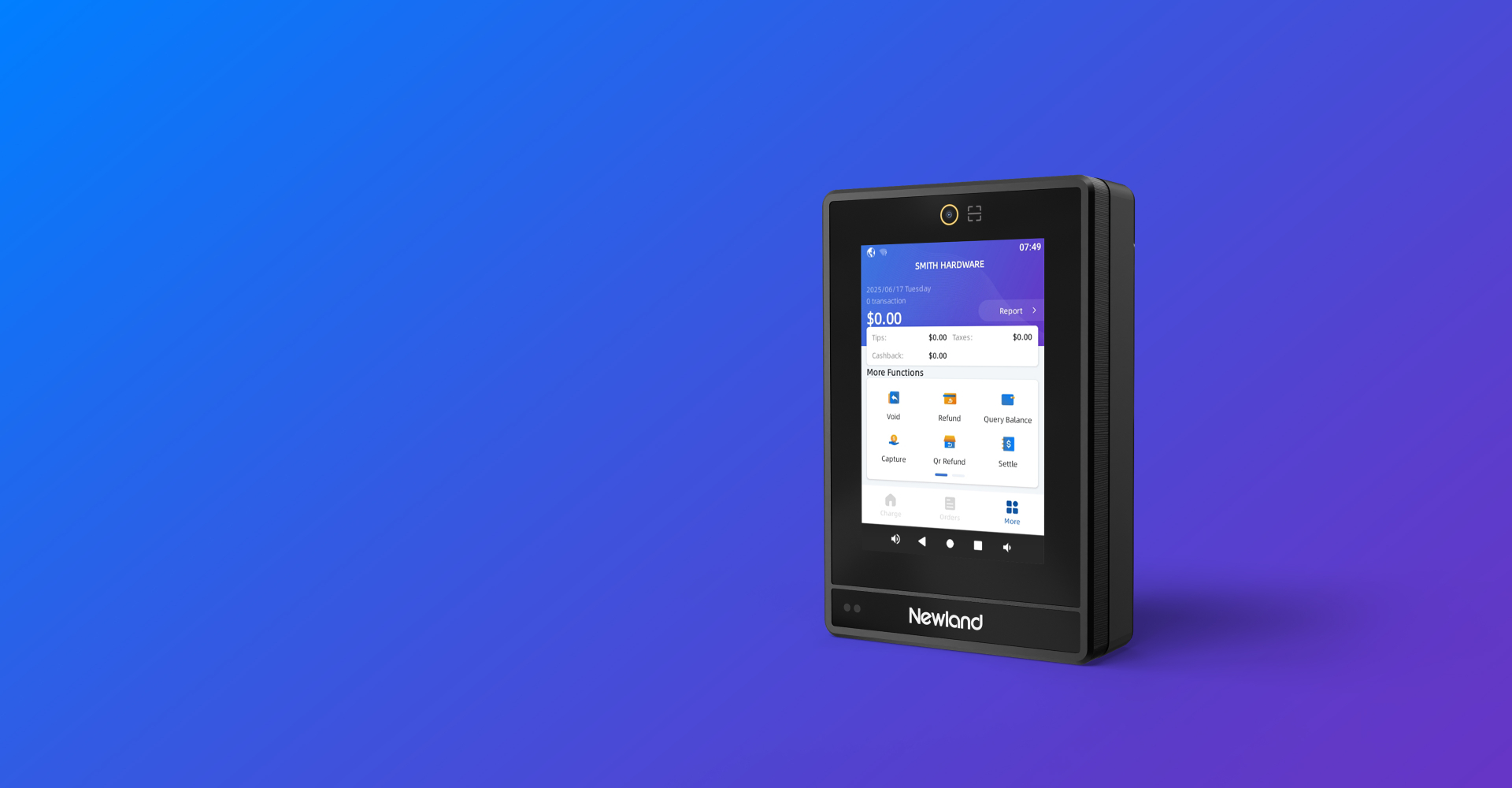

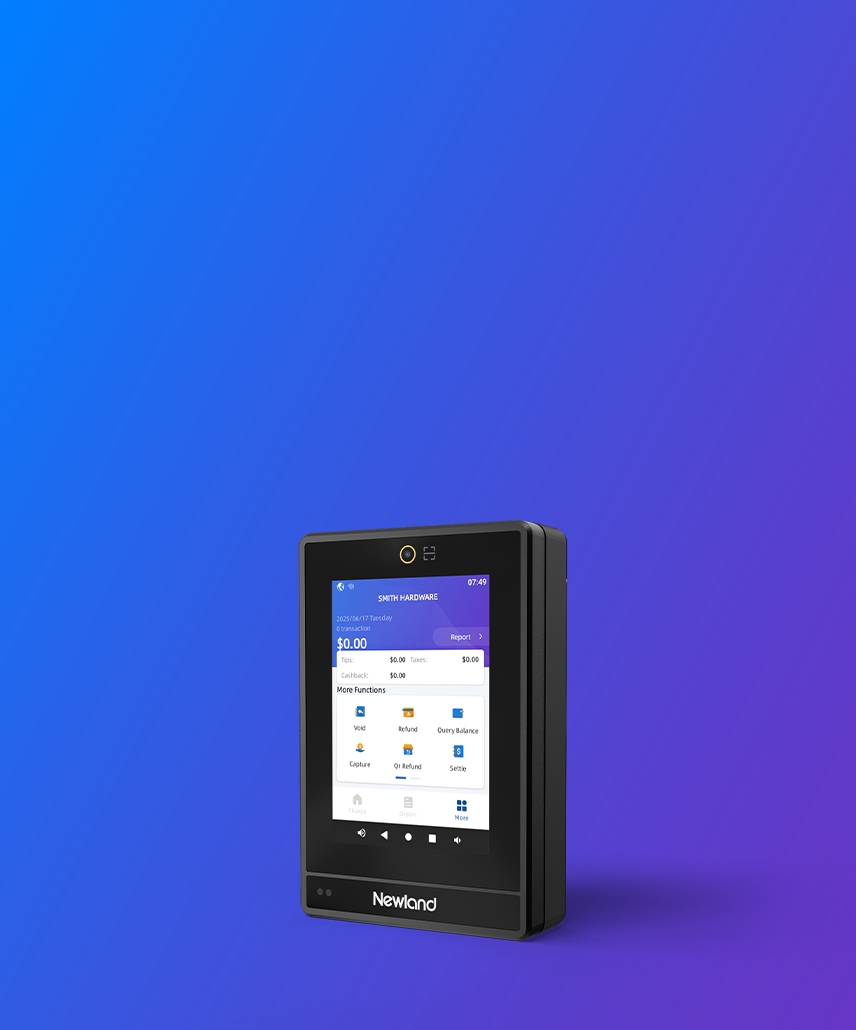

Compact in Size, Powerful in Performance

Powerful and Secure

Harness powerful performance for smooth transactions, minimized wait times, and superior security with the latest PCI 7.x certification

Android 12, Cortex Quad-core A53
Robust performance ensures rapid processing of each transaction
Multiple Certifications
Multiple certifications, including the latest PCI 7, enhance the security of transactions

Multi-Connectivity for Seamless Integration

With a range of physical interfaces and
diverse communication options,
U200 is ideal for various industries and applications.

Exceptional Environmental Durability

U200 is designed for durability and stability in any environment. It is waterproof, dustproof, impact-resistant, and low-temperature resistant, ensuring reliable performance both indoors and outdoors.

IP65 & IK09
Low temperature heating design

Comfortable User Experience

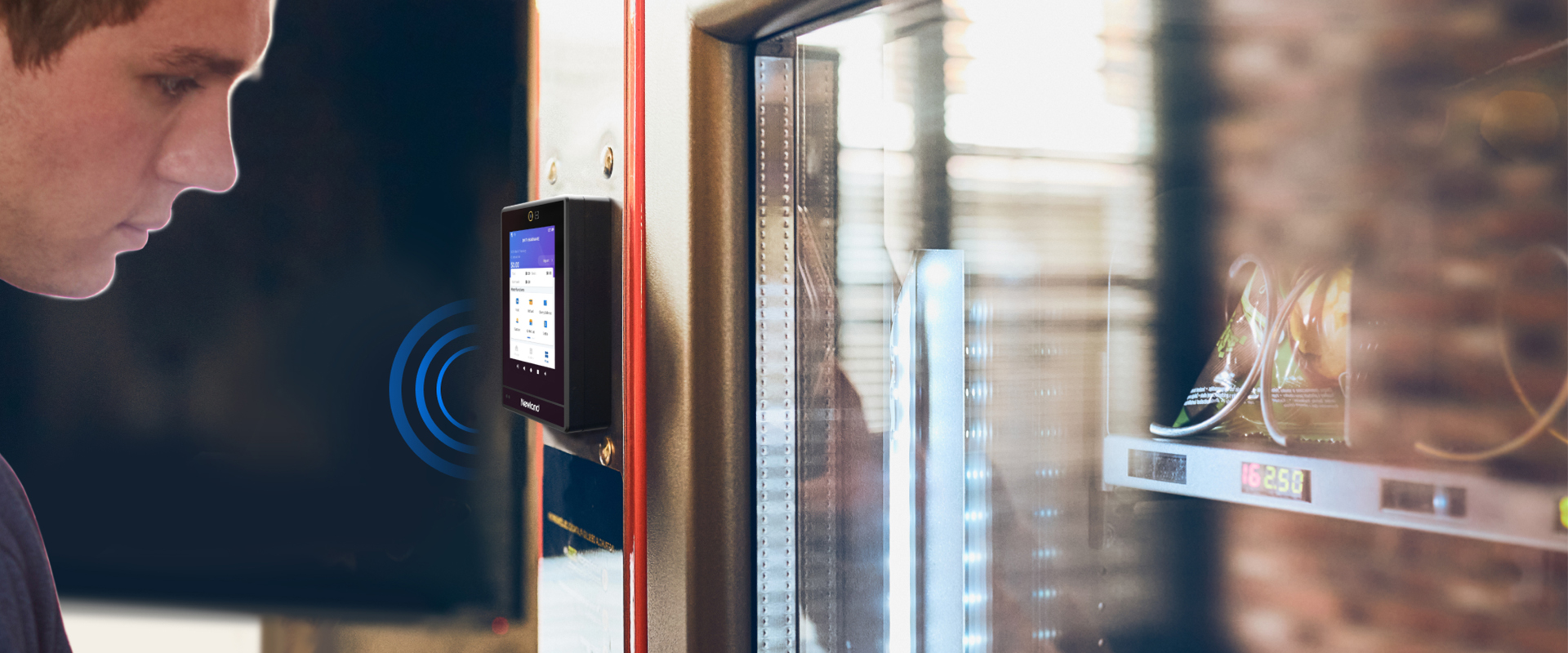

The screen wakes as you approach, with intuitive indicator lights guiding you through fast, hassle-free transactions.

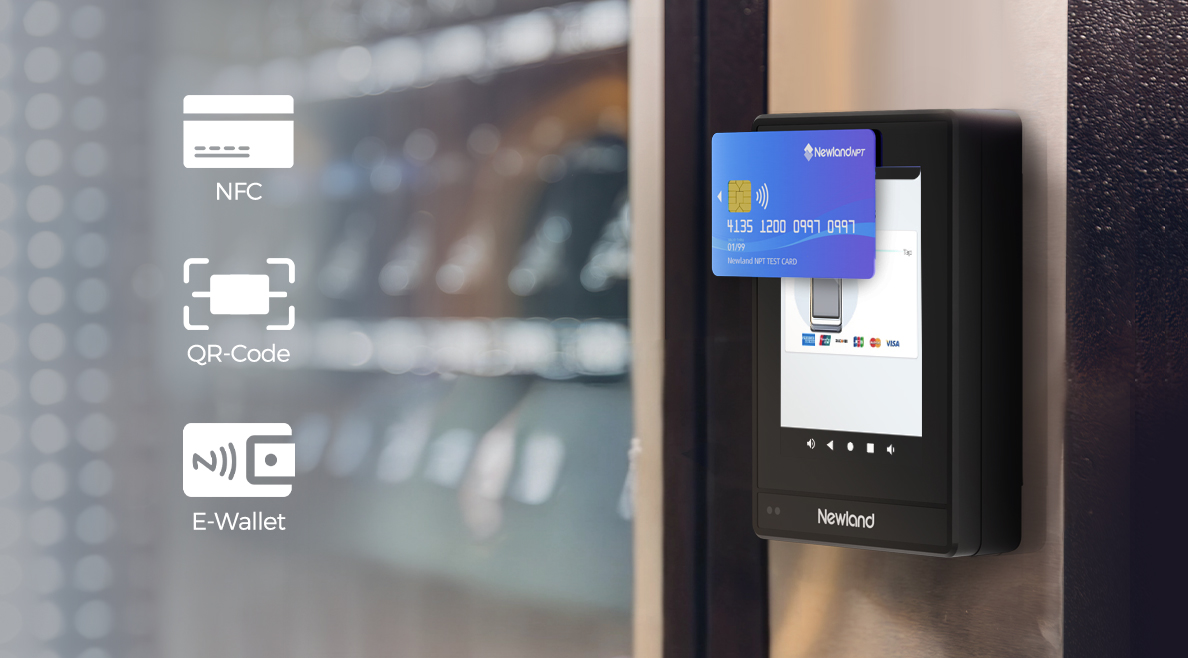

Instant Pay, Anywhere on Screen

Accept a tap anywhere on the screen or a scan of any 1D/2D code. The most convenient and customer-friendly way to pay.

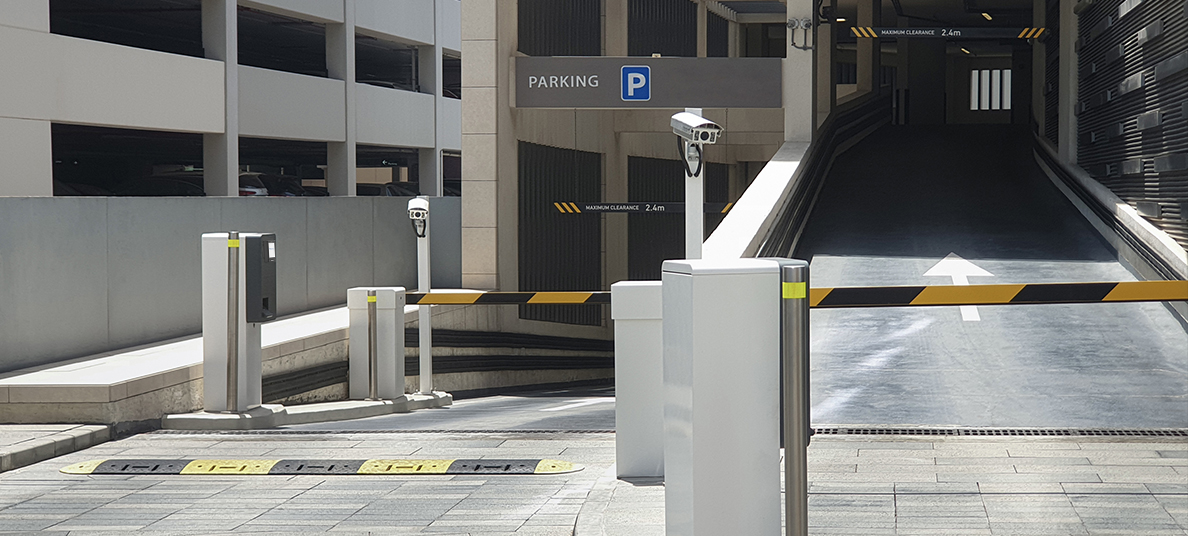

Ideal for Diverse Scenarios

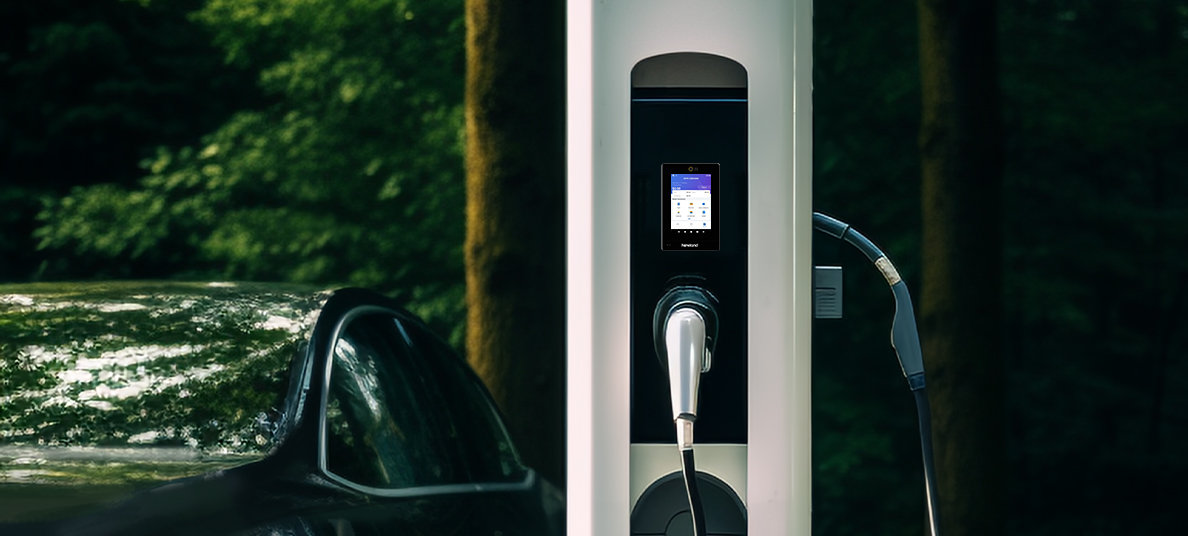

The reliable performance and superior outdoor durability of U200 deliver an enhanced user experience across a variety of scenarios, including EV-charging, vending machines, and parking lots.





Technical Specifications

OS
Android 12
Processor
AP: Cortex Quad-core A53, 2.0GHz
SP: Cortex-M4F security core
Memory
2GB RAM, 16GB FLASH
Display
3.5-inch, resolution of 480*320, capacitive multi-touch screen，anti-fingerprint(AF), anti-glare (AG)
Wired Communication
Ethernet 10/100 Base - T
Wireless Communication
4G / 3G / 2G (Optional)
Wi-Fi (802.11 a/b/g/n/ac) 2.4G&5G, Bluetooth 2.1/5.0
Positioning (Optional)
GPS, GLONASS,BEIDOU, GALILEO, QZSS
Card Reader
Contactless Card Reader
Camera
2MP front camera , support 1D/2D code payment
Audio
1 x Speaker
Keypad
Secure virtual keypad for PIN entry, 2 x buttons on the back
Water & Dust Proof
IK09, IP65

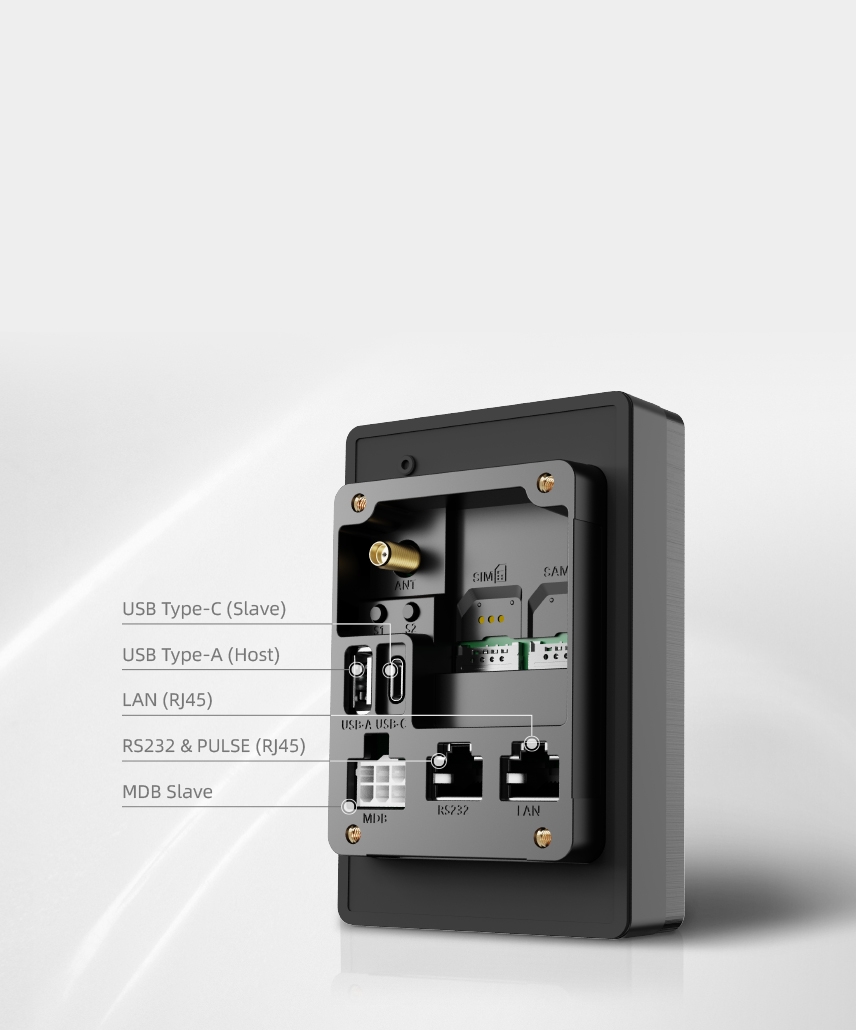

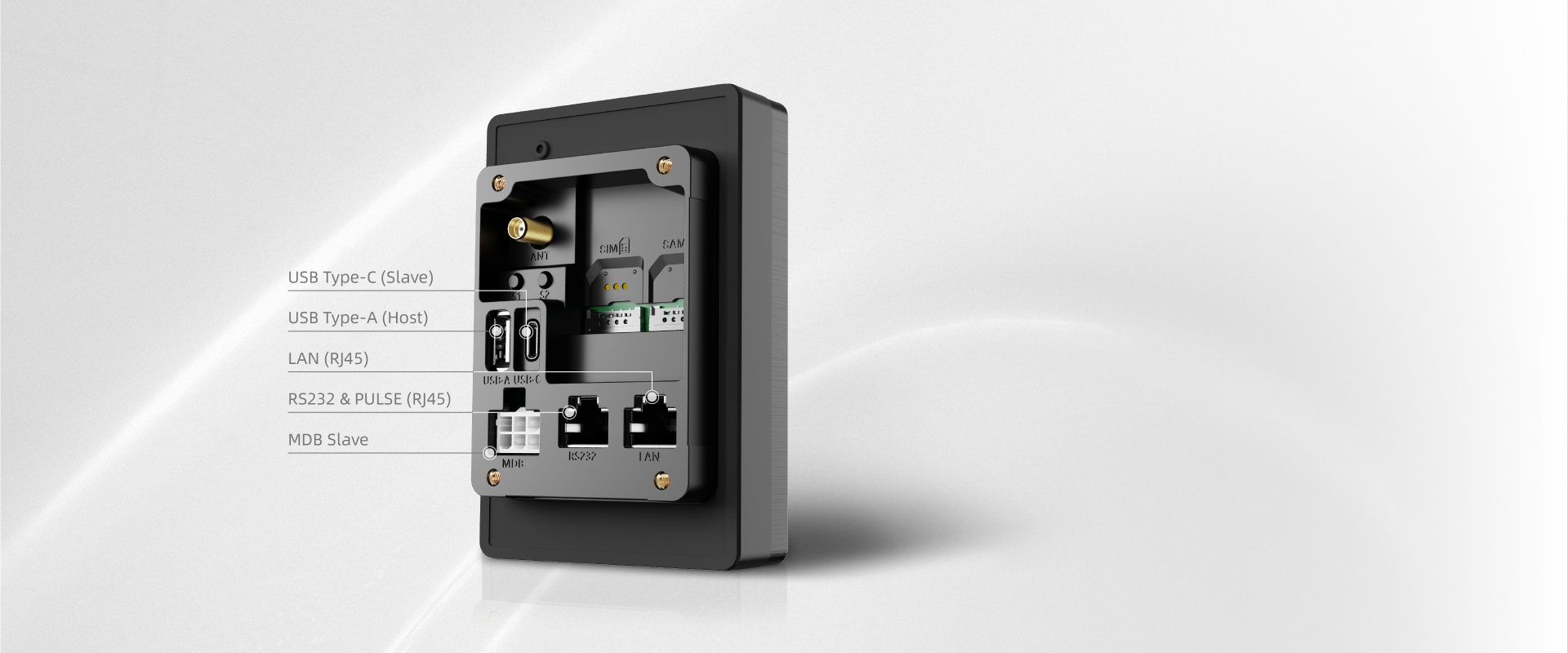

Peripheral Ports
1 x USB Type-A (Host)
1 x USB Type-C (Slave)(used for downloading only)
1 x RS232& PULSE (RJ45)
1 x LAN (RJ45)
1 x MDB Slave
Card Slots
1 x SAM
1 x SIM (Optional)
Power Supply
7V-48V DC via MDB Slave or RS232
Dimensions
111.72mm x 74.56mm x 35.8mm
Sensor (Optional)
TOF Sensor (Active induction sleep wake-up/induction screen illumination)
Anti-demolition (Optional)
Back anti-demolition design
LCD heating module (Optional)
Low temperature heating design for cold weather operation
Environment
Operating temperature: -20℃～+70℃ (-4℉~158℉) without Heating Design；-30℃～+70℃ (-22℉~158℉) with Heating Design；
Storage temperature: -30℃～+70℃ (-22℉~158℉)
Relative humidity: 5%～95% (Non-condensing)
Certifications
EMV CL1、PCI 7.x、PayPass、PayWave、CE、FCC、ROHS、TQM、AMEX、QuickPass、D-PAS、ATEX，JCB
