Conventional Countertop Terminal
Designed for Reliability
A new generation of CPU gives SP880
a faster transaction speed, shorter responsive time,
improved payment efficiency
Large memory ensures the device to
run smoothly without any delays,
designed to withstand the busiest checkouts

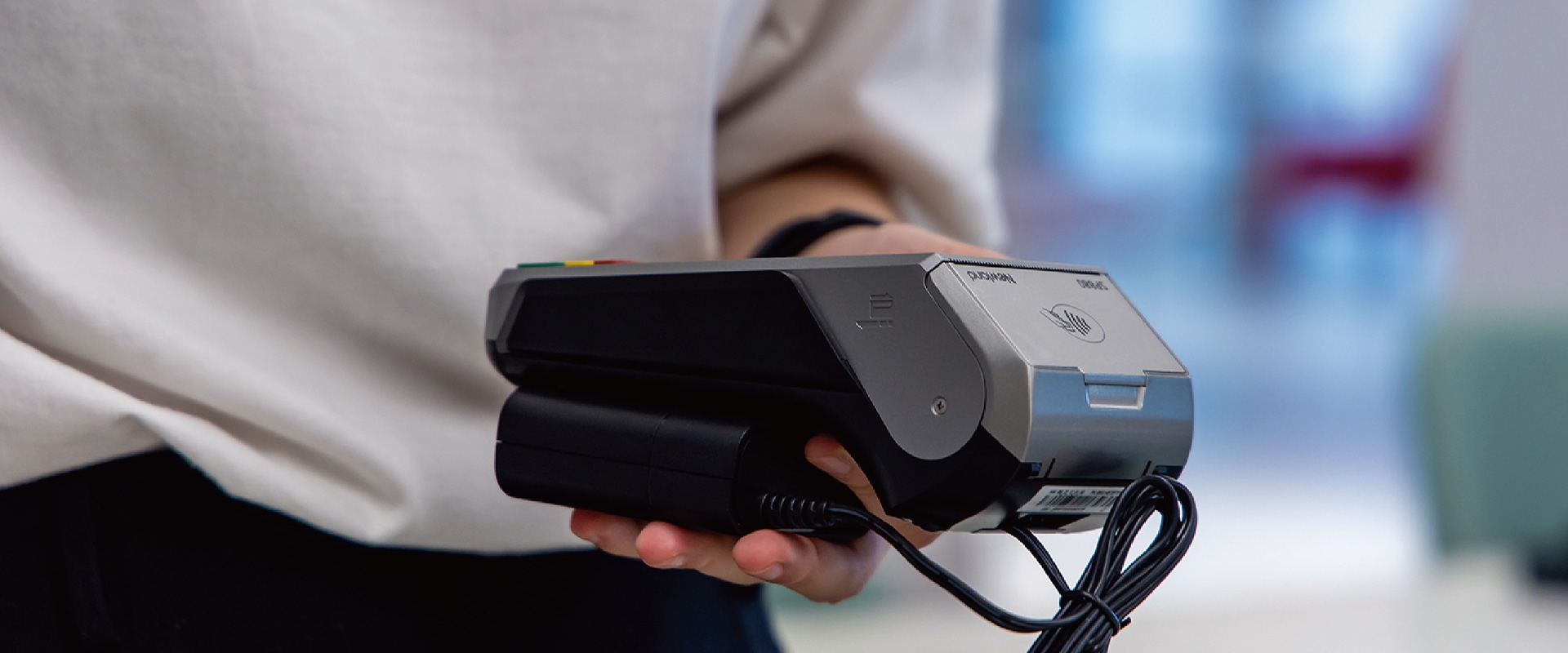

Equipped with a dedicated external power bank,
SP880 can avoid being interfered affected by unstable
voltage during the whole checking out process

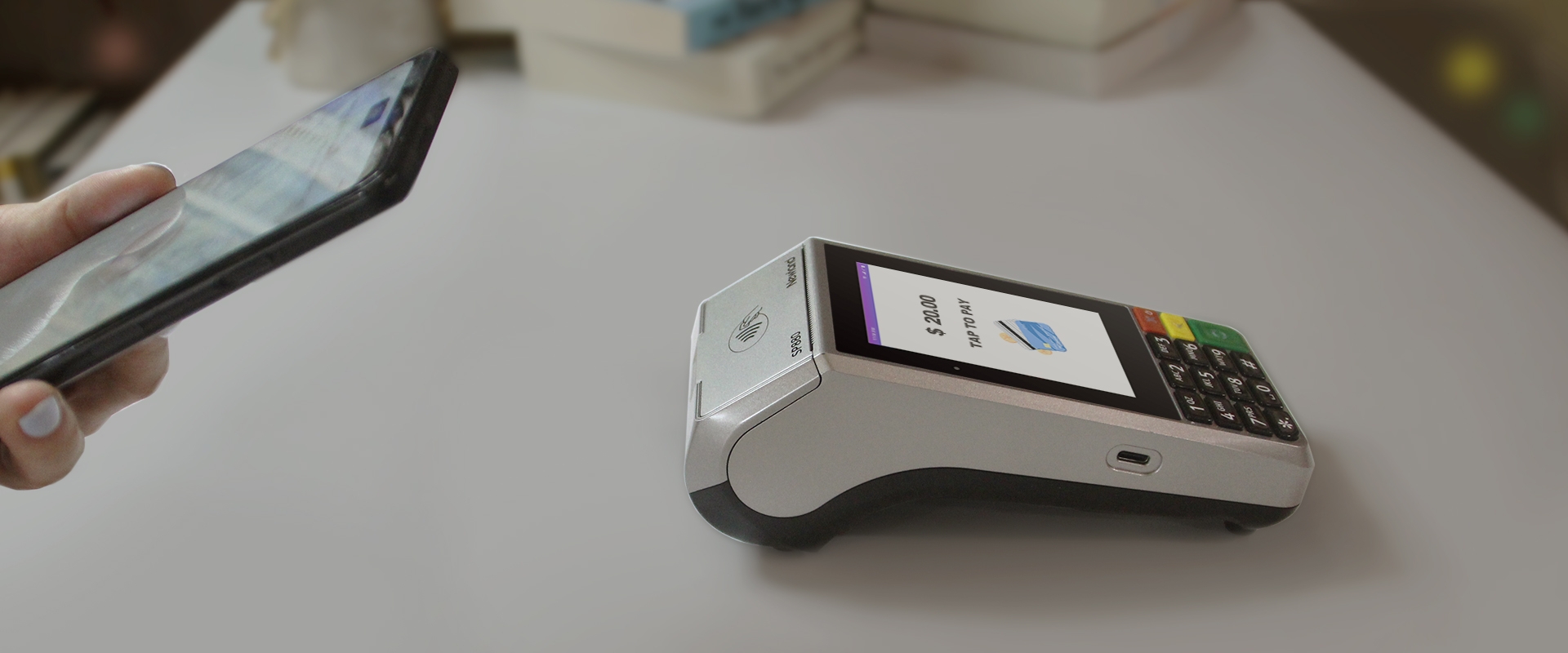

A compact device accepts major payment options including contactless,
EMV smart cards, and magnetic stripe. SP880 seamlessly enables contactless payment
acceptance by supporting Apple Pay, Google Pay and more to dedicate the transaction flows
This flexible product can be applied to various business scenarios perfectly.
Restaurant丨Shopping Mall丨Hotel丨Convenience Store
Linux
32-bit ARM Cortex-A7 secure processor, 1.2GHz
256MB RAM, 256MB FLASH
(Optional) 512MB RAM, 512MB FLASH
(Optional)MicroSD card(up to 32GB )
3.5-inch TFT full color LCD display, resolution of 320 x 480
Capacitve touchscreen, support electronic signature
Dial-up Modem
Ethernet 10/100 Base T
(Optional)4G / 3G / 2G
(Optional) WIFI (802.11 b/g/n) or WIFI (802.11 b/g/n/ac)
(Optional)Bluetooth
Magnetic Card Reader,
Smart Card Reader,
Contactless Card Reader
Built-in buzzer
10 x alphanumeric keys,
5 x function keys, with backlight
High-speed thermal printer, 32lps
Paper roll diameter: 40mm
Paper width: 58mm
1 x DC Jack
1 x RJ11 (PINPAD), 1 x USB-A (Host), 1 x Type-C (OTG)
1 x RJ11 (Line)
1 x RJ45 (LAN)
1 x MicroSIM, 1 x MicroSAM, 1 x SAM
Additional 1 x MicroSIM,1 x MicroSAM,1 x MicroSD
Input: 100-240V AC, 50Hz/60Hz, 0.7
Output: 9.0V DC, 2.5A
(Optional)Backup Li-ion battery
Flexible privacy shield (Optional )
171mm(L) x 80mm(W) x 67mm (H)
315g
Operating temperature: 0°C～40°C (32°F~104°F)
Storage temperature: -20°C～60°C (-4°F~140°F)
Relative humidity: 5%～93% (Non-condensing)
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, TQM, CE, RoHS
