Fast transaction processing and optimized machine management through its next generation Quadcore Cortex chipset and Android 12 operating system.
Cortex Quad-core A532.0GHz
Operates flawlessly in harsh conditions, supporting temperature ranges of -20℃ to +70℃, with IP65 environmental and IK08 impact protection.
Using built-in sensors to automatically detect changes in light and the presence of users, it provides automatic brightness adjustment for optimal energy efficiency.
High sensitivity touchscreen display ensures a seamless user experience even when gloves are worn.

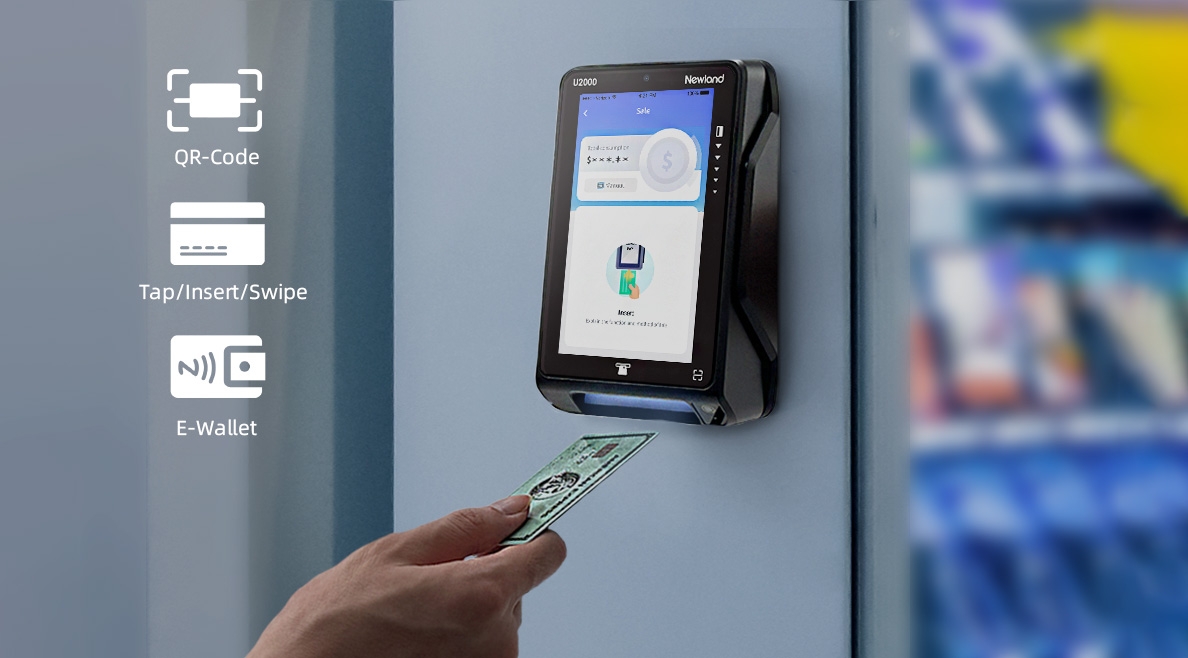

Easy-to-use, supporting all payment methods in a single compact unit with dedicated indicator lights
to guarantee smooth and trouble-free transactions.
Easy-to-integrate design ensures that compatibility with many different machine and kiosk types,

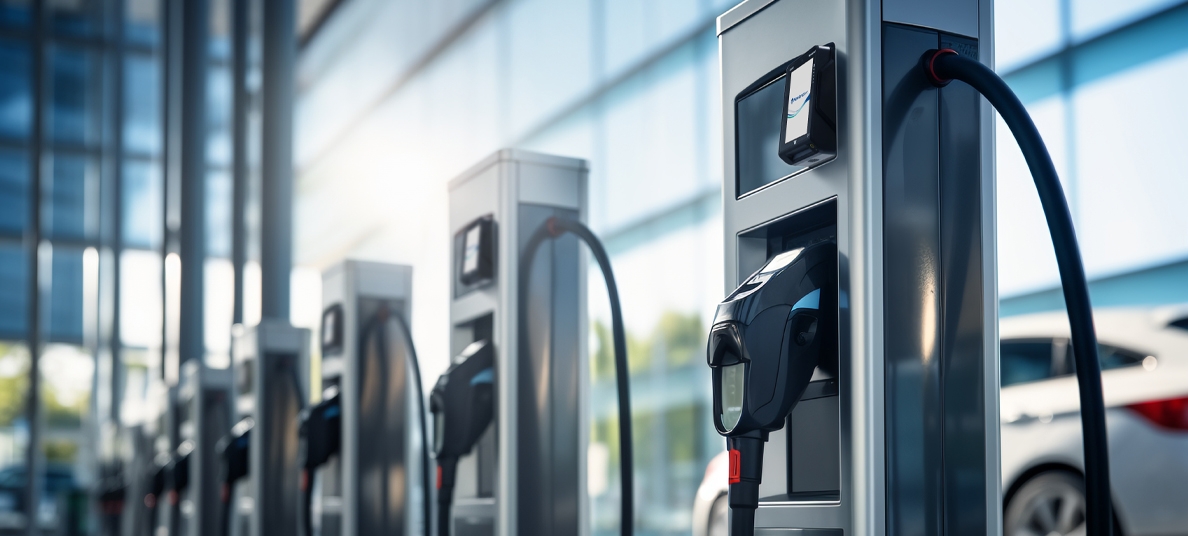

from vending and transport ticketing to parking, petrol and EV-charging stations.
AP: Cortex Quad-core A53, 2.0GHz
SP: Cortex-M4F security core
2GB RAM, 16GB FLASH
Micro SD card slot up to 256GB
5-inch, resolution of 720*1280, capacitive multi-touch screen,
anti-fingerprint(AF), anti-glare (AG), support operation with glove
Ethernet 10/100 Base - T
WIFI (802.11 a/b/g/n/ac) 2.4G&5G, Bluetooth 2.1/5.0
Magnetic Card Reader,
Smart Card Reader,
Contactless Card Reader
2MP QR camera, support 1D/2D code payment
2MP front camera , support 1D/2D code payment(Optional)
1 x Speaker
Secure virtual keypad for PIN entry, 2 x buttons on the back

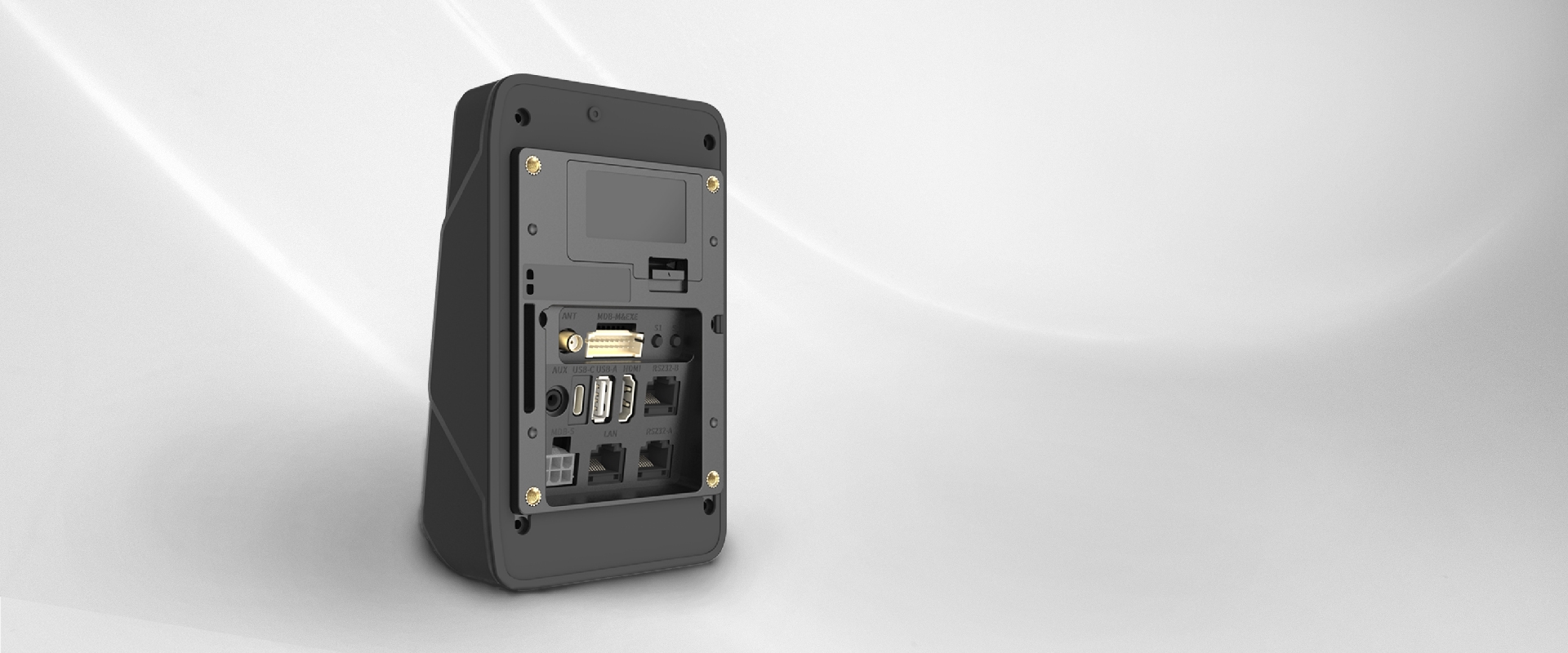

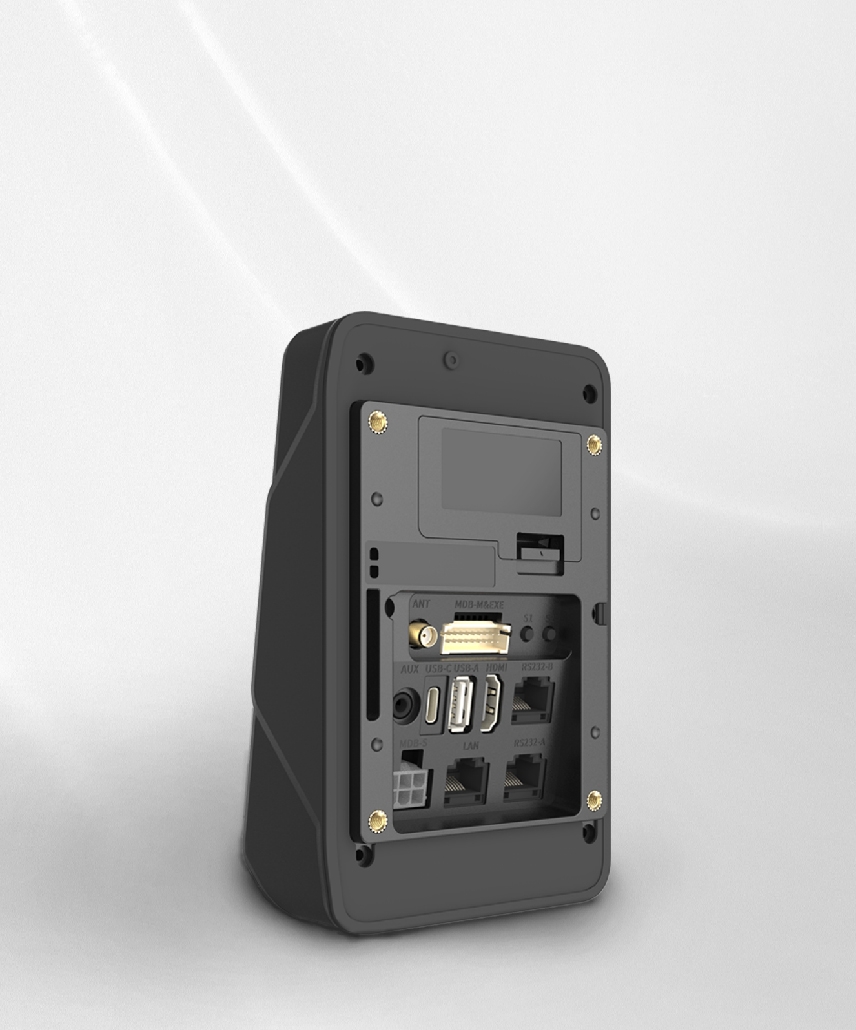

1 x USB Type-A (Host); 1 x USB Type-C (Slave) (used for downloading only);
2 x RS232 (RJ45); 1 x LAN (RJ45) ;
1 x MDB Master & Executive ; 1 x MDB Slave ;
1 x 3.5mm audio jack; 1 x SMA (4G)
1 x HDMI(Optional)
2 x SAM
2 x SIM(Optional)
Microwave radar sensor(Optional)
24V AC via Executive
151.5mm (L) * 94mm (W) * 51.4mm (H)
Operating temperature: -20℃～+70℃ (-4℉~158℉)
Storage temperature: -30℃～+70℃ (-22℉~158℉)
Relative humidity: 5%～93% (Non-condensing)
EMV L1、 EMV CL1、 TQM、 PCI 6.X、 EMV L2、 D-PAS、 AMEX、QuickPass、 PayPass、 PayWave、 RoHS、 CE、 ATEX
