No Fear of Severe Environments,
Innovation of Unattended Payment

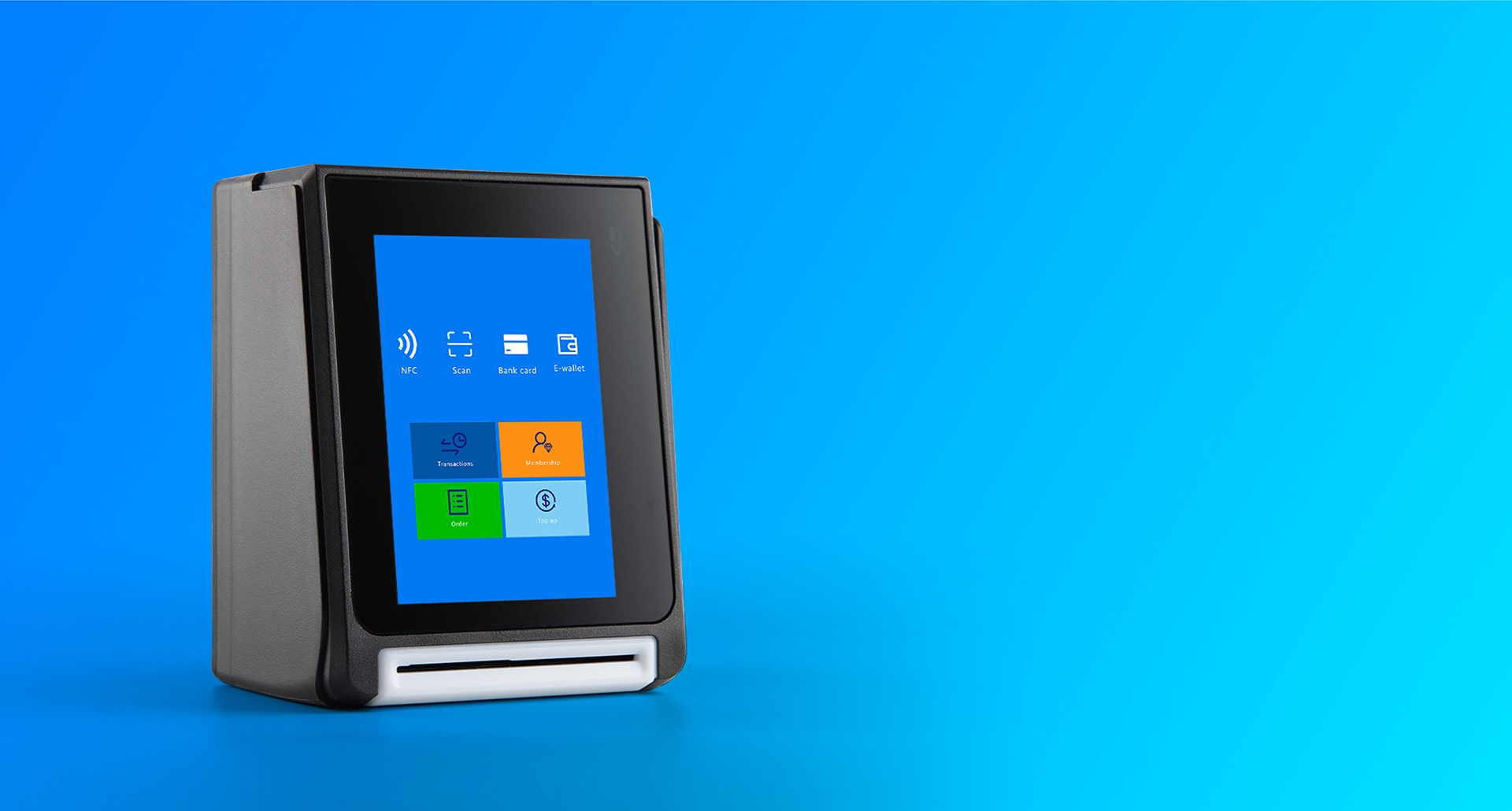

Based on the high-powered platform composed of an advanced processor and large memory, U1000 responds to every instruction instantly, giving a frictionless payment experience.

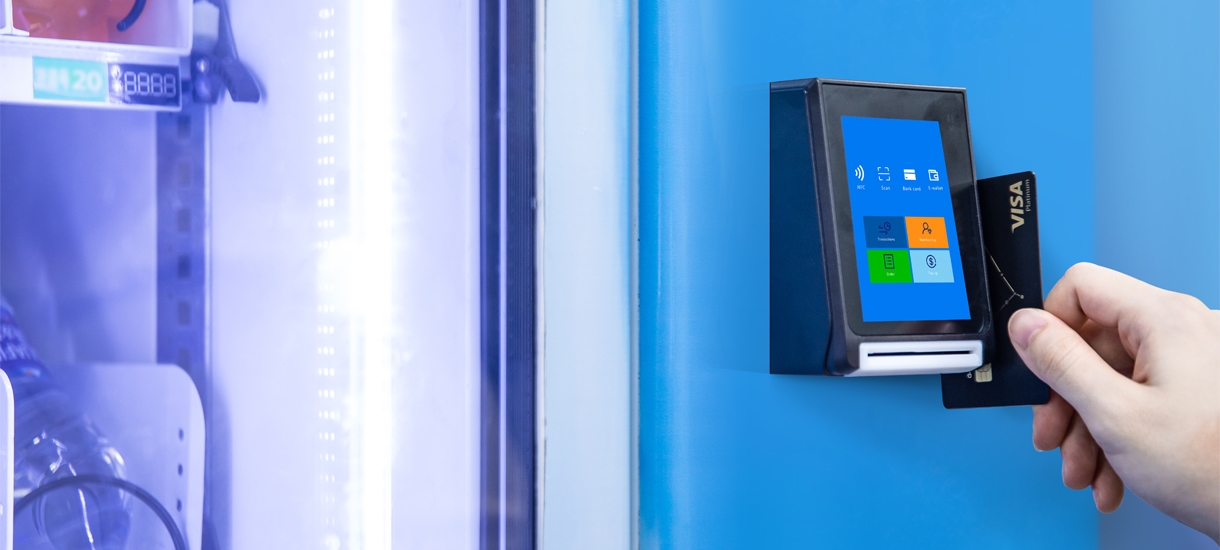

U1000 is a reliable POS terminal built with durability and severe outdoor environments in mind. Approved by IP56* & IK09, U1000 can maintain its function despite high usage in severe outdoor situations such as wind, rain and frost.
enhanced with capacitive multi-touch screen and PIN on glass,
provides clients with a smoother interactive experience on the fingertips.
Packed with various card readers and an optional front scanner,
U1000 accepts all mainstream payment methods
Help U1000 to be integrated into any kiosk systems freely
and fulfil business demand in any from.

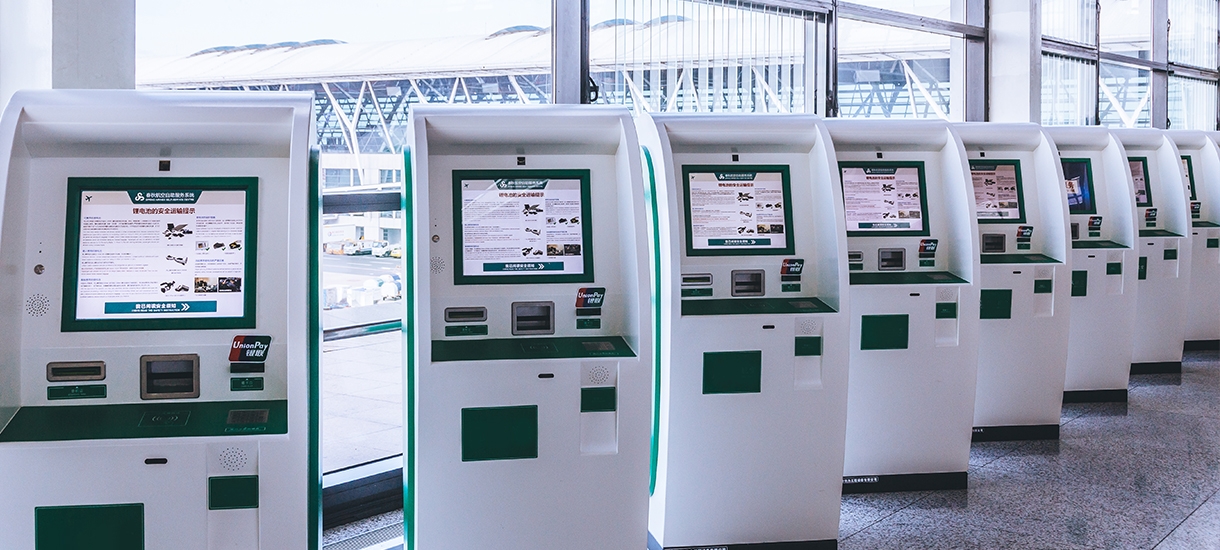

This versatile product can be applied to various business scenarios perfectly.
32-bit Cortex-A9 secure processor, 500MHz
128MB RAM, 128MB Flash
(Optional)256MB RAM, 256MB Flash
(Optional)MicroSD(up to 32GB)

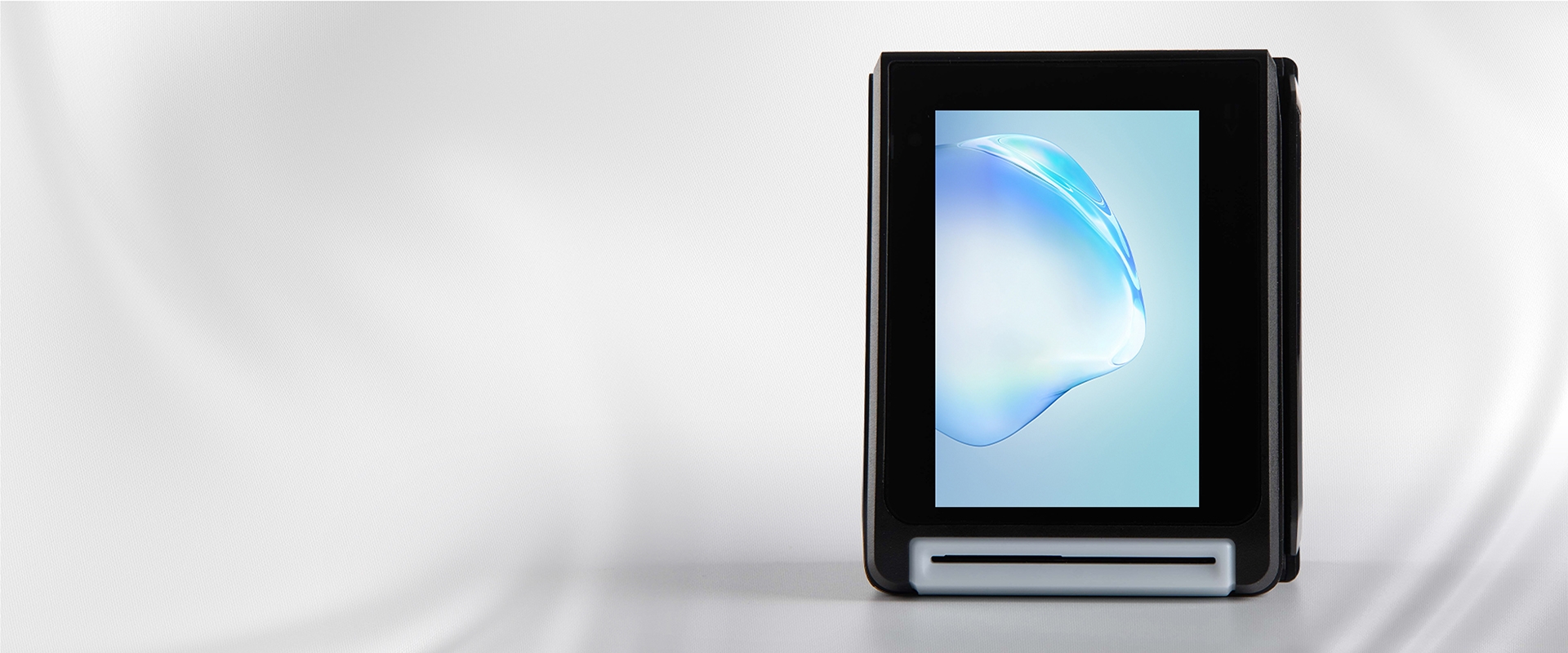

3.5-inch TFT full color LCD display,
resolution of 320 x 480.
Capacitive multi-touch screen
Ethernet 10/100 Base -T
WIFI (802.11 b/g/n)(Optiona),
Magnetic Card Reader,
Smart Card Reader,
Contactless Card Reader
Support 1D/2D code payment(Optional)
Secure virtual keypad for PIN entry,
2 x control buttons on the back
1 x USB-A (Host), 1 x USB-B (Device),
1 x LAN, 1 x MDB, 1 x RS232.
(Optional)1 x SMA
1 x SIM(Optional)
2 x SAM
MDB port: 10V-45V
107mm (L) x 86mm (W) x 64mm (H)
IP56* and IK09 approved
( The IC card slot is not subjected)
Operating temperature: -20°C～+70°C (-4°F～158°F)
Storage temperature: -30°C～+70°C (-22°F～158°F)
Relative humidity: 5%～93% (Non-condensing)
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay,Discover D-PAS, UnionPay QuickPass, TQM, CE, RoHS, MCCS, Rupay, Interac, ATEX, MIR
