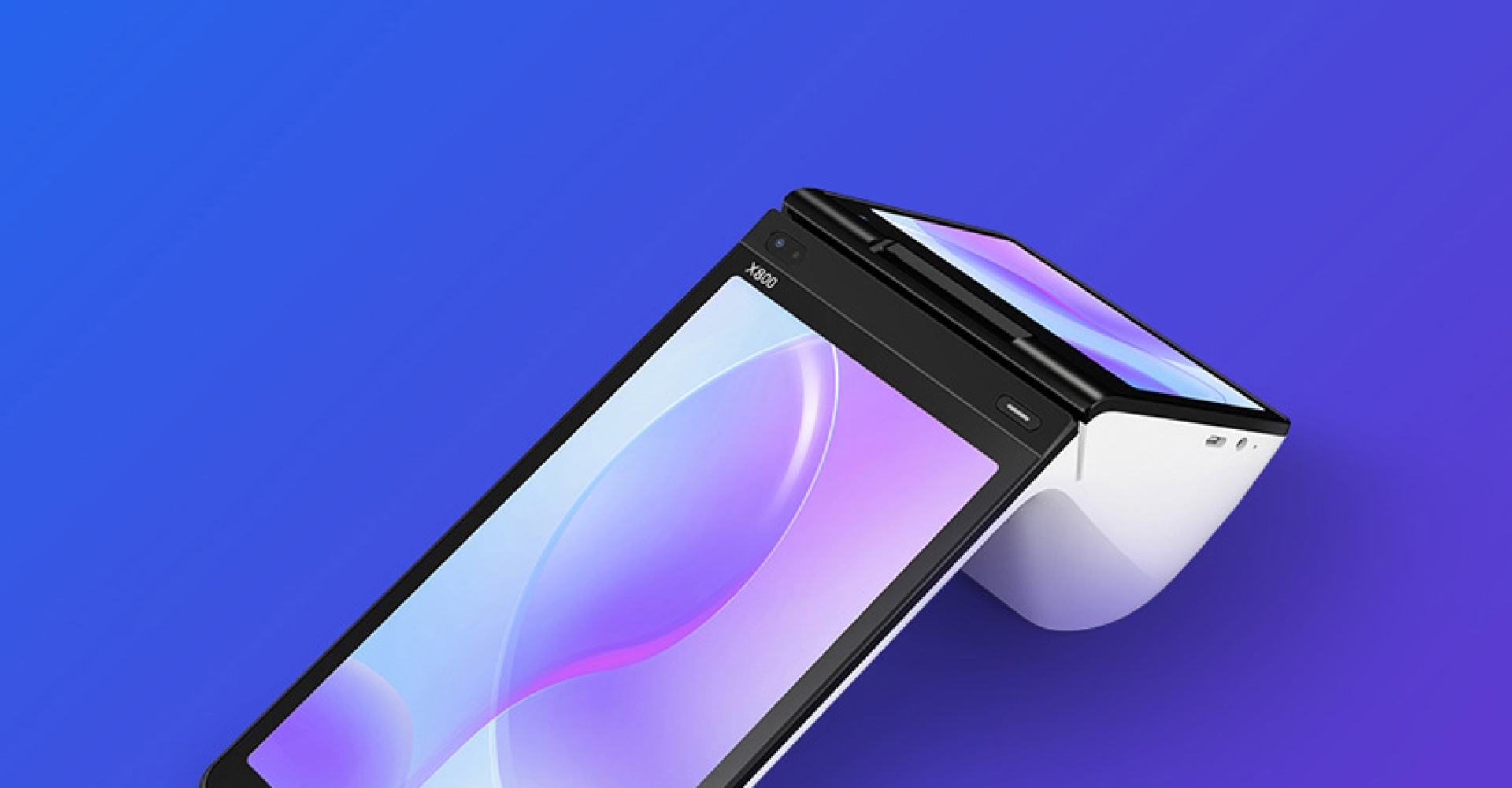

With a super quick processor and extensive memory footprint,
X800 is an ideal solution running a wide variety of payment and business-management
applications at the point-of-sale.
Octa-Core Cortex A53, 1.8GHz
2GB +16GB / 3GB +32GB optional / 4GB +64GB optional

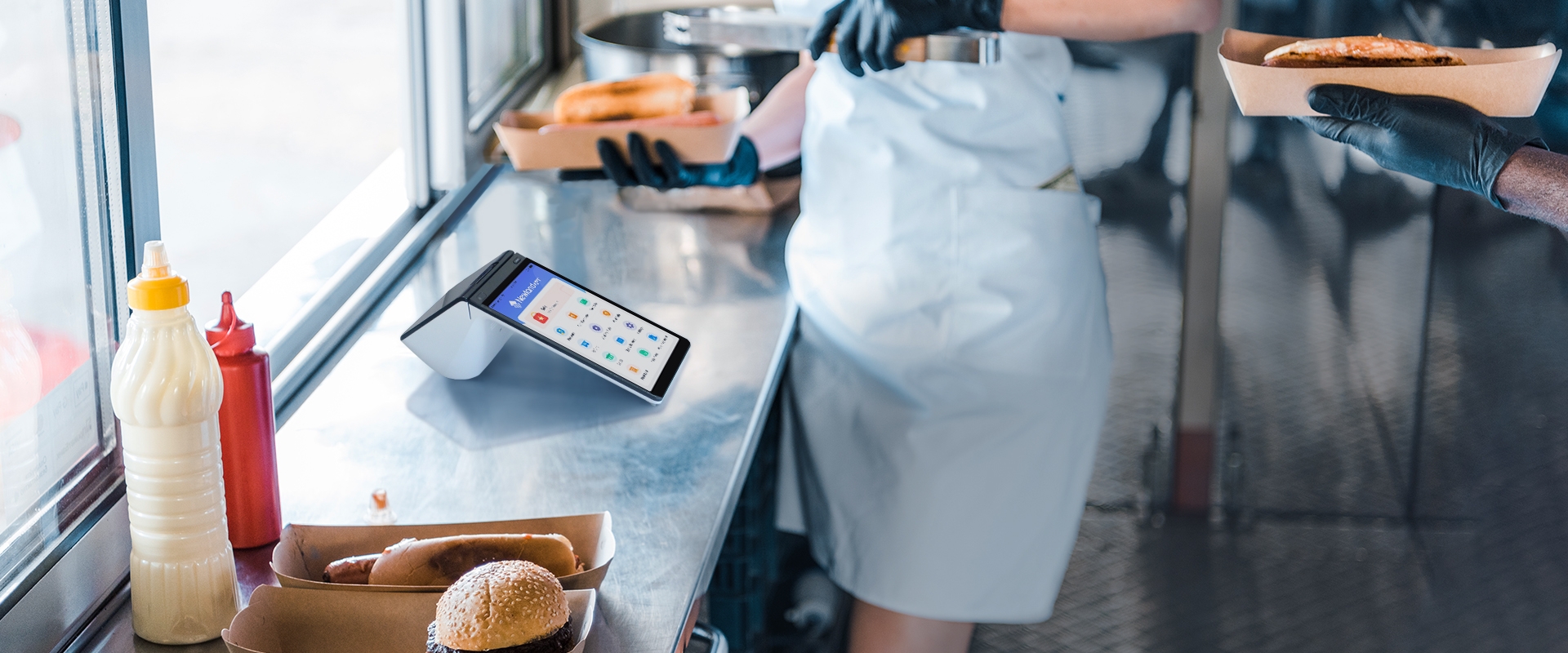

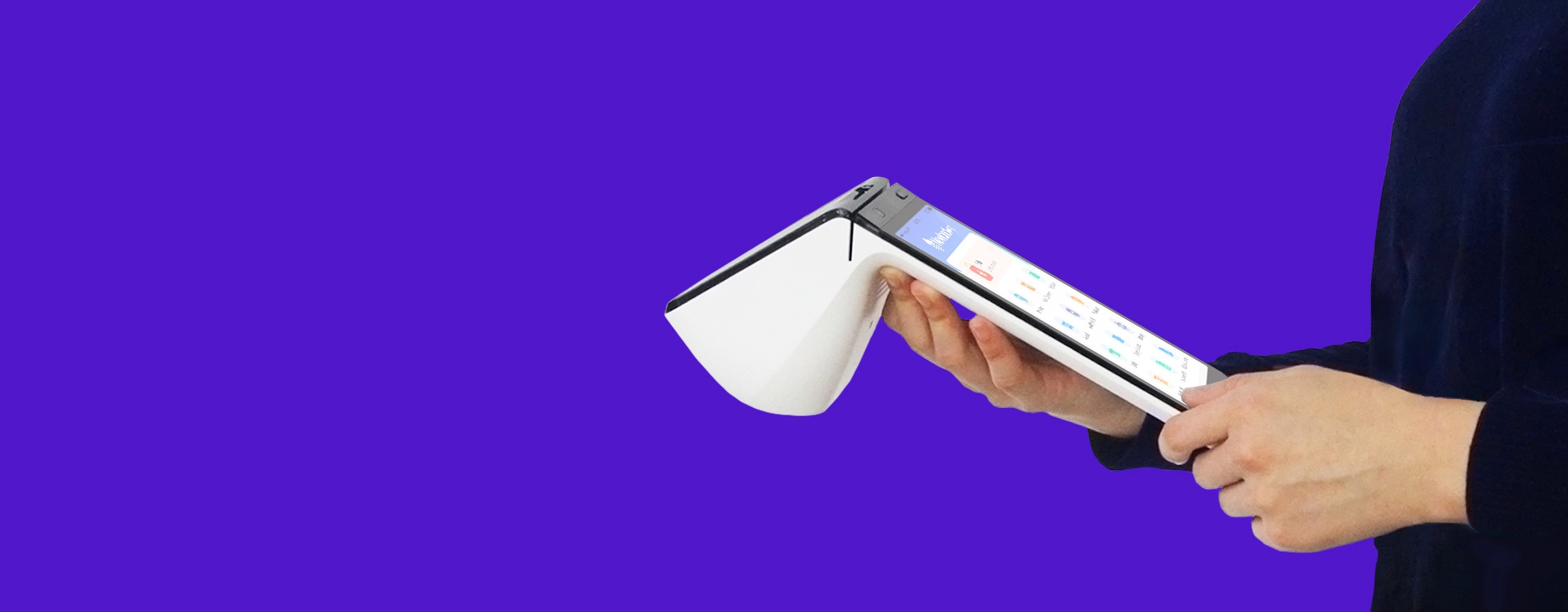

X800 will power your customer interaction wherever it
takes place – thanks to its compact form-factor,
long-lasting battery and multiple connectivity options.

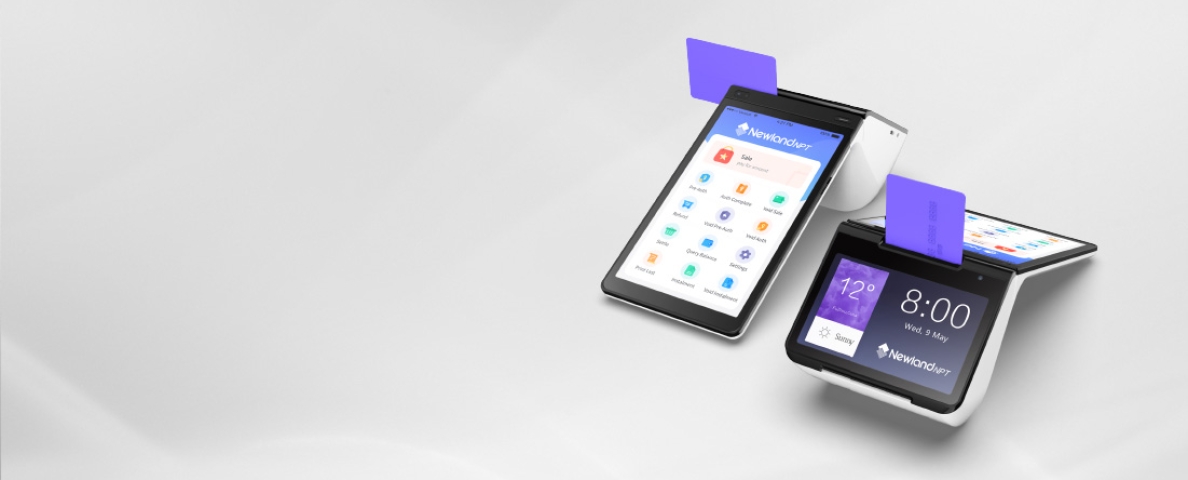

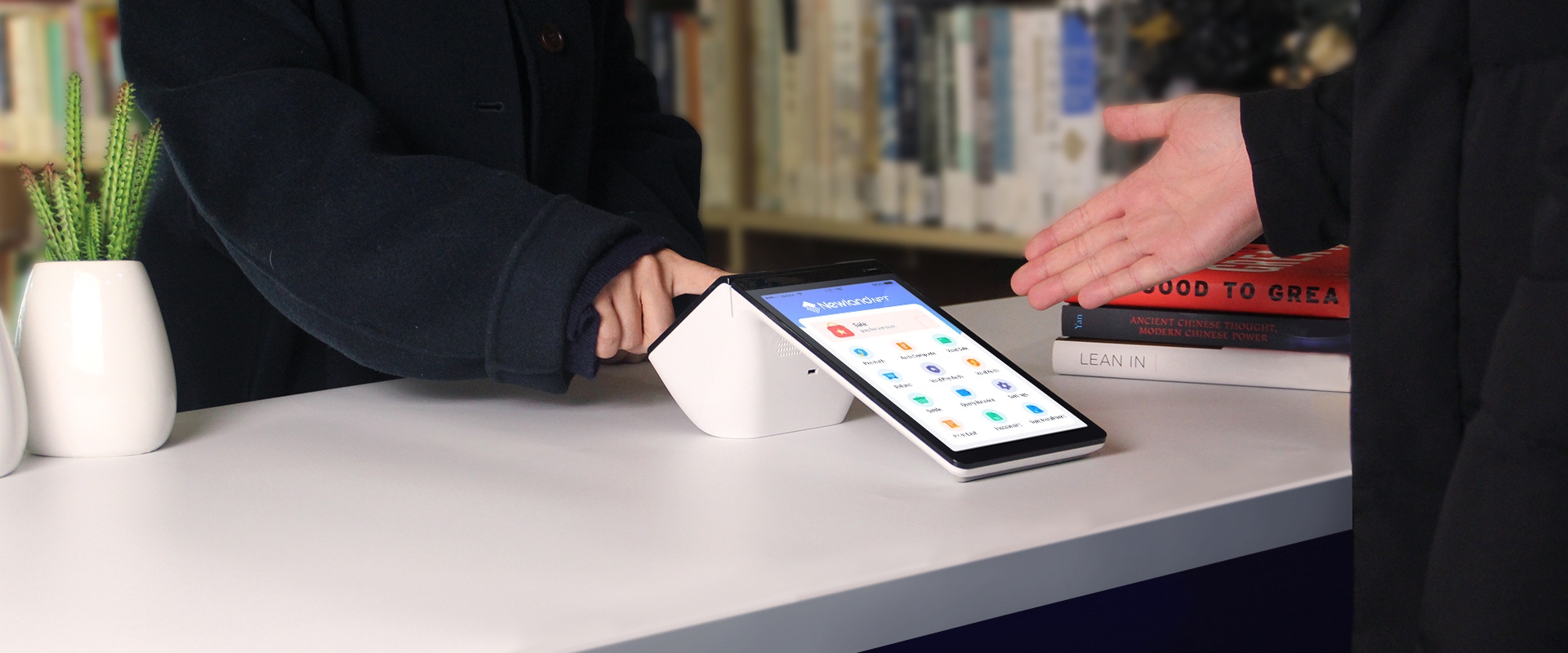

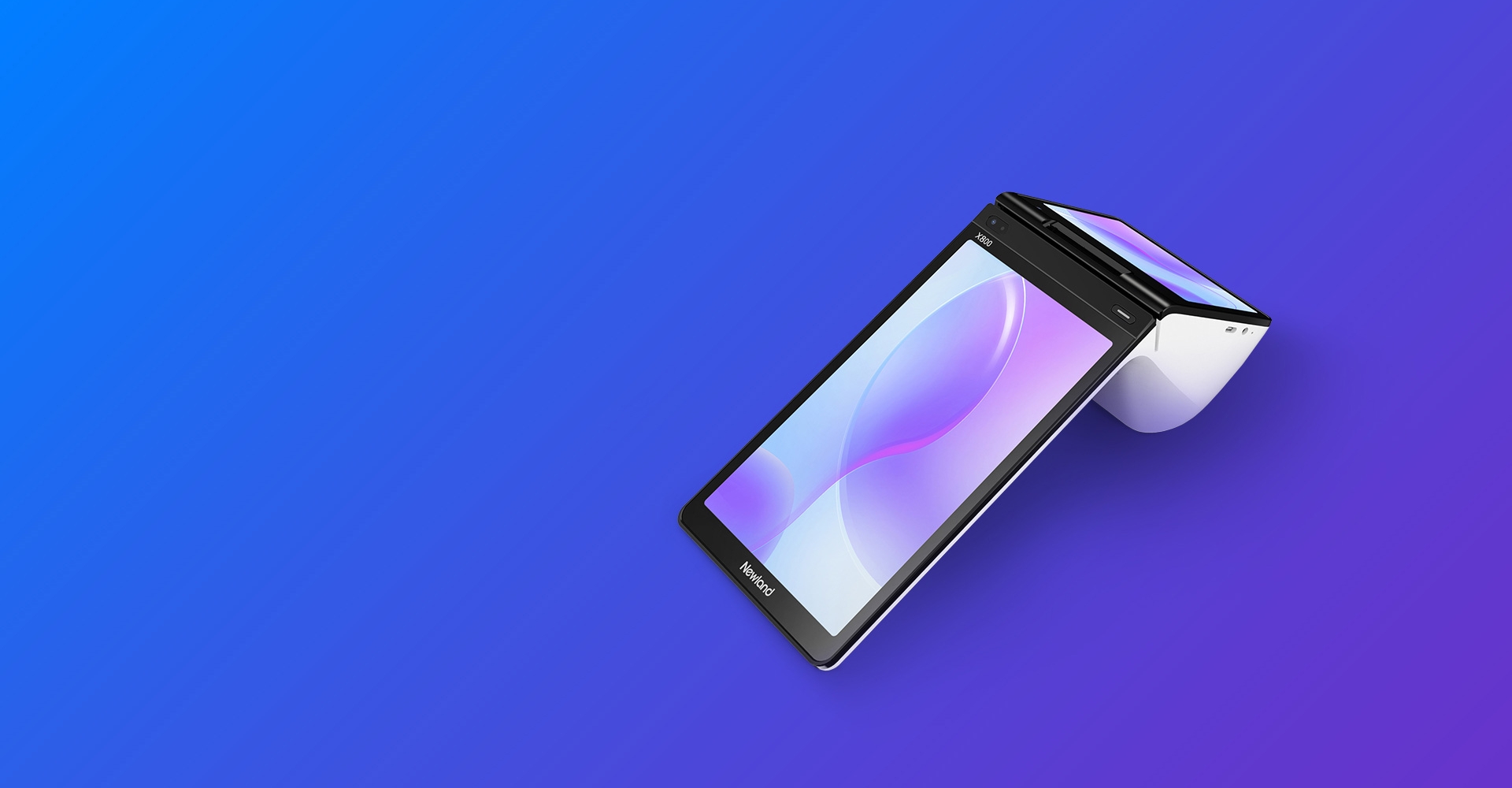

X800's dual high-resolution displays, combined with sleek design lines and frictionless ergonomics allow for a seamless user experience, ensuring that customers are impressed every time.
8” IPS, 800*1280 pixels

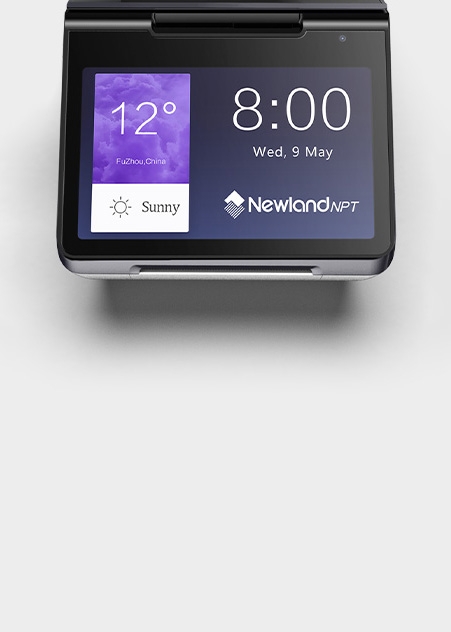

5” IPS, 800*480 pixels

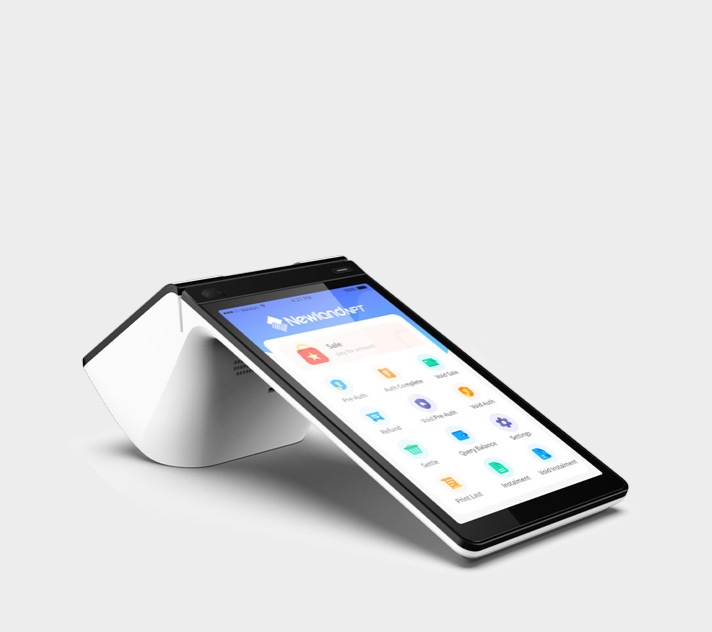

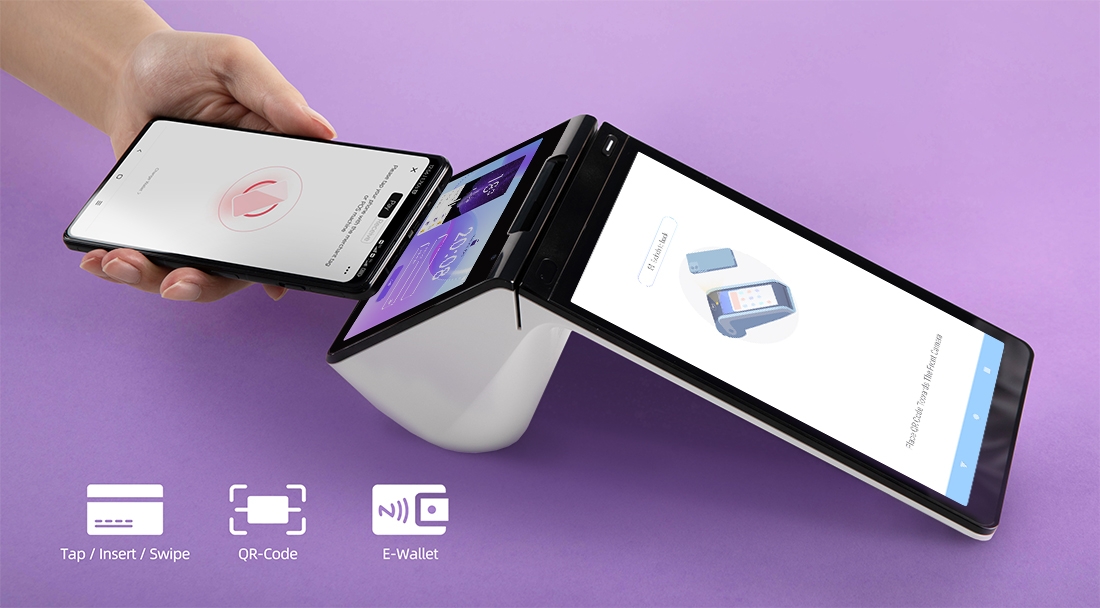

Astonishingly sharp displays. Incredibly fast performance. Fantastic wireless connectivity. Next-generation capabilities. Advanced features that deliver the ultimate point-of-sale experience.
Vertical chip card slot
can be used by customer or merchant

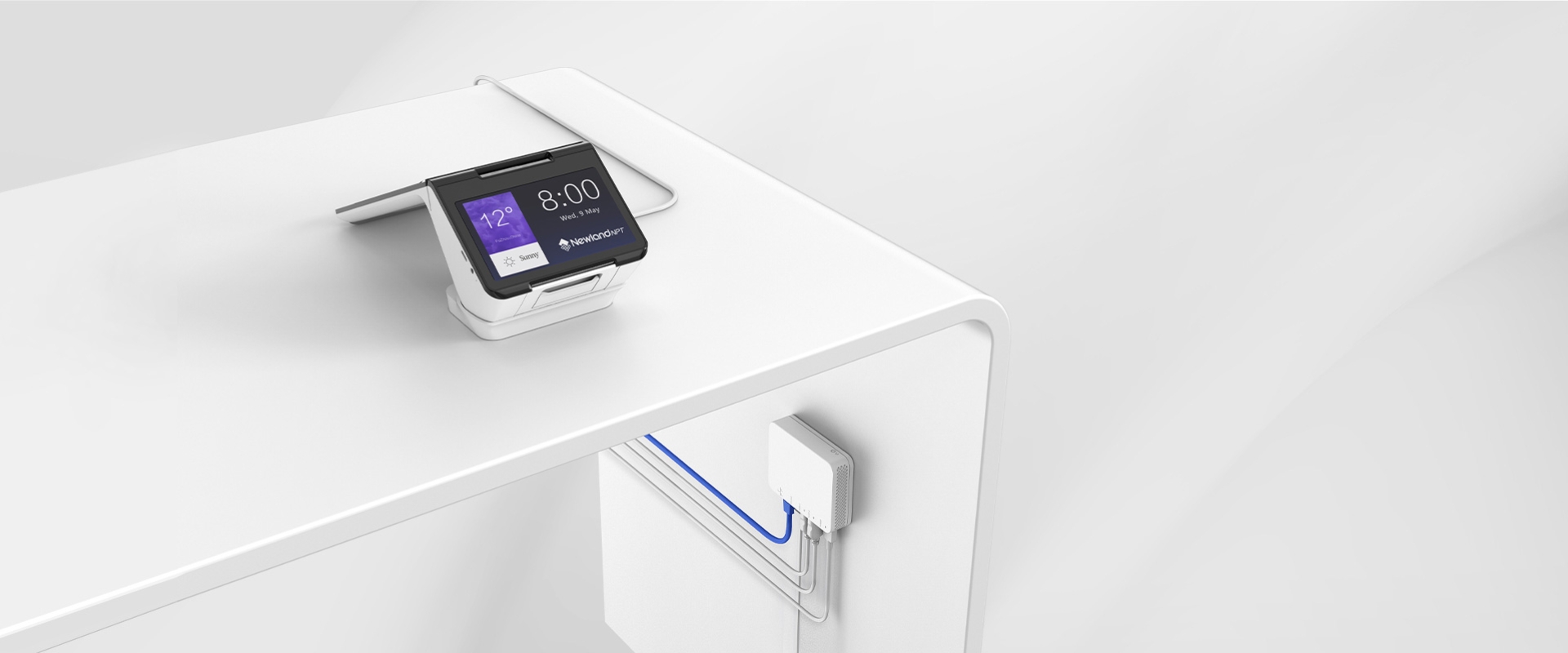

To enhance its compact design and provide even greater versatility, the X800 can be paired with accessories like a charging base and extended communications hub that make it even easier to use in demanding retail environments.
Charging on the go is made easy with this neat and
user-friendly docking station.
Get a power boost when the device is not being used,
making sure that it is always ready for the next customer.
Cafeterias丨Restaurants丨Bakeries丨Convenience stores丨Pharmacies
Specialty retail丨Hospitality丨Fashion outlets丨Pop-up stores
Android 10.x
AP: Octa-Core Cortex A53, 1.8GHz
SP: Arm Cortex M3 security core
2GB LPDDR4+16GB eMMC
3GB LPDDR4+32GB eMMC(Optional)
4GB LPDDR4+64GB eMMC(Optional)
MicroSD card slot up to 256GB
8-inch portrait IPS display, resolution of 800 x 1280, capacitive multi-touch screen
5-inch landscape IPS display, resolution of 800 x 480, capacitive multi-touch screen
4G / 3G / 2G
Wi-Fi (802.11 a/b/g/n/ac) 2.4G&5G
Bluetooth 2.1 EDR/3.0 HS/4.2 LE
GPS/BEIDOU/GLONASS
/GALILEO/QZSS/SBAS
Magnetic Card Reader,
Smart Card Reader,
Contactless Card Reader
2 MP fixed focal front camera, support 1D/2D code payment
2 MP fixed focal rear camera, support 1D/2D code payment
1 x Speaker, 1 x Microphone, 1 x Audio JACK, support audio recording and media play
Secure virtual keypad for PIN entry, 1 x power button
High-speed thermal printer, 80mm/s
Paper roll diameter: 50mm
Paper width: 58mm
Li-ion battery, 3.8V/6000mAh/22.8Wh
1 x Type-C, USB2.0 OTG
Pogo Pins
2 x SIM, 1 x SAM, 1 x SD
1 x SIM, 2 x SAM, 1 x SD(Optional)
Input: 100-240V AC, 50Hz/60Hz
Output: 5.0V DC，3A
274.9mm (L) * 123.4mm (W) * 101.6mm (H)
895g including battery
Charging base
1 x RS232, 2 x USB-A, 1 x Type-C, 1 x Ethernet (RJ45), 1 x Cash drawer port
Operating temperature: -10℃～50℃ (14℉~122℉)
(Charging below 0° is not recommended as it will affect battery performance)
Storage temperature: -20℃～70℃ (-4℉~158℉)
Relative humidity: 5%～93% (Non-condensing)
PCI PTS 6.x, EMVL1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, JCB, TQM, CE, RoHS, CB, FeliCa, MIC, BIS, Rupay, MCCS, Saber, FCC, WEEE & VOC
